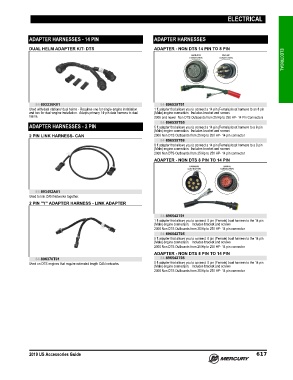

Page 630 - US ACCESSORIES GUIDE (2019)

ELECTRICAL

ADAPTER HARNESSES - 14 PIN ADAPTER HARNESSES

DUAL HELM ADAPTER KIT- DTS ADAPTER - NON DTS 14 PIN TO 8 PIN ELECTRICAL

84-893330K01 84-896539T01
Used with dual stations/ dual helms ‑ Requires one for single‑engine installation 1 ft adapter that allows you to connect a 14 pin (Female) boat harness to an 8 pin
and two for dual‑engine installation. Adapts primary 14‑pin data harness to dual (Male) engine connection. Includes bracket and screws
helms. 2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
84-896539T05
ADAPTER HARNESSES - 2 PIN 5 ft adapter that allows you to connect a 14 pin (Female) boat harness to a 8 pin
(Male) engine connection. Includes bracket and screws
2 PIN LINK HARNESS- CAN 2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
84-896539T08
8 ft adapter that allows you to connect a 14 pin (Female) boat harness to a 8 pin
(Male) engine connection. Includes bracket and screws
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
ADAPTER - NON DTS 8 PIN TO 14 PIN

84-893452A01
Used to link CAN Networks together.
2 PIN "Y" ADAPTER HARNESS - LINK ADAPTER

84-896542T01
1 ft adapter that allows you to connect 8 pin (Female) boat harness to the 14 pin
(Male) engine connection. Includes bracket and screws
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
84-896542T05
5 ft adapter that allows you to connect 8 pin (Female) boat harness to the 14 pin
(Male) engine connection. Includes bracket and screws
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
ADAPTER - NON DTS 8 PIN TO 14 PIN
84-896370T01 84-896542T08
Used on DTS engines that require extended length CAN networks. 8 ft adapter that allows you to connect 8 pin (Female) boat harness to the 14 pin
(Male) engine connection. Includes bracket and screws
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector

2019 US Accessories Guide 617
