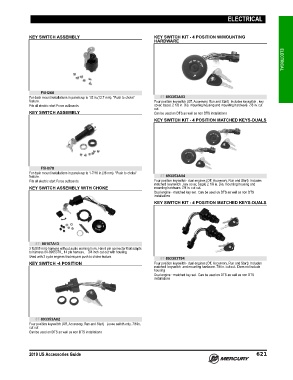

Page 634 - US ACCESSORIES GUIDE (2019)

ELECTRICAL

KEY SWITCH ASSEMBLY KEY SWITCH KIT - 4 POSITION W/MOUNTING
HARDWARE ELECTRICAL

F5H268
For dash mount installations in panels up to 1/2 in.(12.7 mm). "Push to choke" 87-893353A03
feature. Four position keyswitch (Off, Accessory, Run and Start) Includes keyswitch , key
Fits all electric start Force outboards. cover, bezel, 2 1/8 in. Dia. mounting housing and mounting hardware. 7/8 in. cut
out
KEY SWITCH ASSEMBLY Can be used on DTS as well as non DTS installations
KEY SWITCH KIT - 4 POSITION MATCHED KEYS-DUALS

F5H078
For dash mount installations in panels up to 1‑7/16 in.(36 mm). "Push to choke"
feature. 87-893353A04
Fits all electric start Force outboards. Four position keyswitch‑ dual engines (Off, Accessory, Run and Start) Includes
matched keyswitch , key cover, bezel, 2 1/8 in. Dia. mounting housing and
KEY SWITCH ASSEMBLY WITH CHOKE mounting hardware. 7/8 in. cut out.
Dual engine ‑ matched key set. Can be used on DTS as well as non DTS
installations
KEY SWITCH KIT - 4 POSITION MATCHED KEYS-DUALS

87- 88107A13
3 ft.(915 mm) harness without audio warning horn. Has 6 pin connector that adapts
to harness 84‑896537K_ 14 pin harness. 3/4 inch cut out with housing
Used with 2 cycle engines that require push to choke feature.
87-893353T04
KEY SWITCH -4 POSITION Four position keyswitch‑ dual engines (Off, Accessory, Run and Start) Includes
matched keyswitch and mounting hardware. 7/8 in. cut out. Does not include
housing
Dual engine ‑ matched key set. Can be used on DTS as well as non DTS
installations

87-893353A02
Four position keyswitch (Off, Accessory, Run and Start) Loose switch only. 7/8 in.
cut out
Can be used on DTS as well as non DTS installations

2019 US Accessories Guide 621
