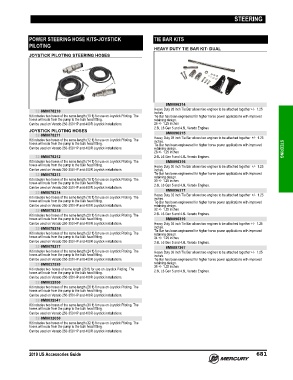

Page 694 - US ACCESSORIES GUIDE (2019)

STEERING

POWER STEERING HOSE KITS-JOYSTICK TIE BAR KITS
PILOTING
HEAVY DUTY TIE BAR KIT- DUAL
JOYSTICK PILOTING STEERING HOSES

8M0096314
Heavy Duty 26 inch Tie Bar allows two engines to be attached together +/‑ 1.25
32-8M0078210 inches.
Kit includes two hoses of the same length (10 ft) for use on Joystick Piloting. The Tie Bar has been engineered for higher horse power applications with improved
hoses will route from the pump to the bulk head fitting. retaining design.
Can be used on Verado 250‑350 HP and 400R Joystick installations. 26 +/‑ 1.25 inches
2.6L L6 Gen 5 and 4.6L Verado Engines
JOYSTICK PILOTING HOSES
32-8M0078211 8M0096315
Kit includes two hoses of the same length (12 ft) for use on Joystick Piloting. The Heavy Duty 28 inch Tie Bar allows two engines to be attached together +/‑ 1.25
inches.
hoses will route from the pump to the bulk head fitting. Tie Bar has been engineered for higher horse power applications with improved
Can be used on Verado 250‑350 HP and 400R Joystick installations. retaining design. STEERING
28 +/‑ 1.25 inches
32-8M0078212 2.6L L6 Gen 5 and 4.6L Verado Engines.
Kit includes two hoses of the same length (14 ft) for use on Joystick Piloting. The 8M0096316
hoses will route from the pump to the bulk head fitting. Heavy Duty 30 inch Tie Bar allows two engines to be attached together +/‑ 1.25
Can be used on Verado 250‑350 HP and 400R Joystick installations. inches.
32-8M0078213 Tie Bar has been engineered for higher horse power applications with improved
Kit includes two hoses of the same length (16 ft) for use on Joystick Piloting. The retaining design.
30 +/‑ 1.25 inches
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations. 2.6L L6 Gen 5 and 4.6L Verado Engines.
32-8M0078214 8M0096317
Kit includes two hoses of the same length (18 ft) for use on Joystick Piloting. The Heavy Duty 32 inch Tie Bar allows two engines to be attached together +/‑ 1.25
inches.
hoses will route from the pump to the bulk head fitting. Tie Bar has been engineered for higher horse power applications with improved
Can be used on Verado 250‑350 HP and 400R Joystick installations. retaining design.
32-8M0078215 32 +/‑ 1.25 inches
Kit includes two hoses of the same length (20 ft) for use on Joystick Piloting. The 2.6L L6 Gen 5 and 4.6L Verado Engines.
hoses will route from the pump to the bulk head fitting. 8M0096319
Can be used on Verado 250‑350 HP and 400R Joystick installations. Heavy Duty 34 inch Tie Bar allows two engines to be attached together +/‑ 1.25
32-8M0078216 inches.
Tie Bar has been engineered for higher horse power applications with improved
Kit includes two hoses of the same length (22 ft) for use on Joystick Piloting. The retaining design.
hoses will route from the pump to the bulk head fitting. 34 +/‑ 1.25 inches
Can be used on Verado 250‑350 HP and 400R Joystick installations. 2.6L L6 Gen 5 and 4.6L Verado Engines.
32-8M0078217 8M0097267
Kit includes two hoses of the same length (24 ft) for use on Joystick Piloting. The Heavy Duty 36 inch Tie Bar allows two engines to be attached together +/‑ 1.25
hoses will route from the pump to the bulk head fitting. inches.
Can be used on Verado 250‑350 HP and 400R Joystick installations. Tie Bar has been engineered for higher horse power applications with improved
32-8M0032520 retaining design.
36 +/‑ 1.25 inches
Kit includes two hoses of same length (26 ft) for use on Joystick Piloting. The 2.6L L6 Gen 5 and 4.6L Verado Engines.
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0032530
Kit includes two hoses of the same length (28 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0032547
Kit includes two hoses of the same length (30 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0032630
Kit includes two hoses of the same length (32 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.

2019 US Accessories Guide 681
