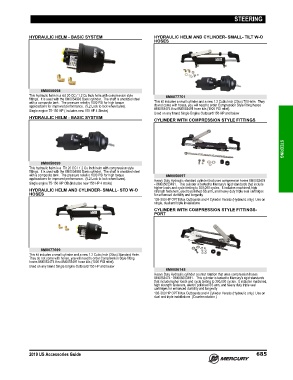

Page 698 - US ACCESSORIES GUIDE (2019)

STEERING

HYDRAULIC HELM - BASIC SYSTEM HYDRAULIC HELM AND CYLINDER- SMALL- TILT W-O
HOSES

8M0050098
This hydraulic helm is a std 20 CC / 1.2 Cu Inch helm with compression style 8M0077701
fittings. It is used with the 8M0054993 Basic cylinder. The shaft is anodized steel
with a composite tank. The pressure relief is 1000 PSI for high torque This kit includes a small cylinder and a new 1.2 Cubic Inch (20cc) Tilt Helm. They
applicactions for improved performance. (5.2 Lock to lock wheel turns). do not come with hoses, you will need to order Compression Style fitting hoses
Single engine 75‑150 HP ( includes new 150 HP 4 Stroke) 8M0053474 thru 8M0053491 hose kits (1000 PSI relief).
Used on any brand Single Engine Outboard 150 HP and below
HYDRAULIC HELM - BASIC SYSTEM
CYLINDER WITH COMPRESSION STYLE FITTINGS

8M0050099 STEERING
This hydraulic helm is a Tilt 20 CC / 1.2 Cu Inch helm with compression style
fittings. It is used with the 8M0054993 Basic cylinder. The shaft is anodized steel
with a composite tank. The pressure relief is 1000 PSI for high torque 8M0050097
applicactions for improved performance. (5.2 Lock to lock wheel turns). Heavy Duty Hydraulic standard cylinder that uses compression hoses 8M0053474
Single engine 75‑150 HP OB (Includes new 150 HP 4 stroke) ‑ 8M005053491. This cylinder is tested to Mercury's rigid standards that include
higher loads and cycle testing to 300,000 cycles. It includes machined, high
HYDRAULIC HELM AND CYLINDER- SMALL- STD W-O strength fasteners, electro polished SS arm, and heavy duty triple seal cartridges
HOSES for enhanced duribility and longevity
135‑300 HP OPTI Max Outboards and 4 Cylinder Verado (Hydraulic only) Use on
single, dual and triple installations
CYLINDER WITH COMPRESSION STYLE FITTINGS-
PORT

8M0077699
This kit includes a small cylinder and a new 1.2 Cubic Inch (20cc) Standard Helm.
They do not come with hoses, you will need to order Compression Style fitting
hoses 8M0053474 thru 8M0053491 hose kits (1000 PSI relief).
Used on any brand Single Engine Outboard 150 HP and below
8M0056145
Heavy Duty Hydraulic cylinder counter rotation that uses compression hoses
8M0053474 ‑ 8M005053491. This cylinder is tested to Mercury's rigid standards
that include higher loads and cycle testing to 300,000 cycles. It includes machined,
high strength fasteners, electro polished SS arm, and heavy duty triple seal
cartridges for enhanced duribility and longevity
135‑300 HP OPTI Max Outboards and 4 Cylinder Verado (Hydraulic only) Use on
dual and triple installations (Counter rotation )

2019 US Accessories Guide 685
