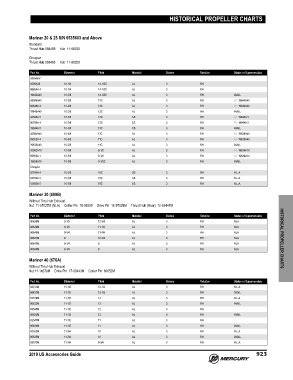

Page 936 - US ACCESSORIES GUIDE (2019)

HISTORICAL PROPELLER CHARTS

Mariner 20 & 25 S/N 6535603 and Above
Standard
Thrust Hub 858498 Hub 11‑88228
Chopper
Thrust Hub 858498 Hub 11‑88228
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
Standard
4590A40 10-1/4 14-1/2C AL 3 RH
89854A 4 10-1/4 14-1/2C AL 3 RH
19642A40 10-3/8 14-1/2C AL 3 RH AVAIL.
43586A40 10-3/8 13C AL 3 RH 48- 19640A40
86848A 4 10-3/8 13C AL 3 RH 48- 19640A40
19640A40 10-3/8 13C AL 3 RH AVAIL.
43588A 5 10-3/8 13C SS 3 RH 48- 19644A 5
90780A 4 10-3/8 13C SS 3 RH 48- 19644A 5
19644A 5 10-3/8 13C SS 3 RH AVAIL.
43584A40 10-3/8 11C AL 3 RH 48- 19638A40
89852A 4 10-3/8 11C AL 3 RH 48- 19638A40
19638A40 10-3/8 11C AL 3 RH AVAIL.
43582A10 10-3/8 9-1/2 AL 3 RH 48- 19636A10
89850A 1 10-3/8 9-1/2 AL 3 RH 48- 19636A10
19636A10 10-3/8 9-1/2C AL 3 RH AVAIL.
Chopper
92764A 4 10-3/8 18C SS 3 RH N.L.A.
92764A 5 10-3/8 18C SS 3 RH N.L.A.
43592A 5 10-3/8 18C SS 3 RH N.L.A.

Mariner 30 (689B)
Without Thru Hub Exhaust
Nut 11‑97027M (NLA) Cotter Pin 18‑95295 Drive Pin 18‑97028M Thrust Hub (Rear) 12‑83447M

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
96638M 9-1/2 12-3/8 AL 3 RH NLA
96639M 9-1/2 11-1/2 AL 3 RH NLA
96640M 9-1/4 11-1/4 AL 3 RH NLA
96641M 9 10-3/4 AL 3 RH NLA HISTORICAL PROPELLER CHARTS
96642M 9-1/4 9 AL 3 RH NLA
96643M 9-1/4 8 AL 3 RH NLA

Mariner 40 (676A)
Without Thru Hub Exhaust
Nut 11‑14279M Drive Pin 17‑83443M Cotter Pin 80652M

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
83311M 11-1/2 13-1/2 AL 3 RH N.L.A.
96631M 11-1/2 13-1/2 AL 3 RH AVAIL.
83729M 11-1/2 13 AL 3 RH N.L.A.
96632M 11-1/2 13 AL 3 RH AVAIL.
83535M 11-1/2 12 AL 3 RH
96633M 11-1/2 12 AL 3 RH AVAIL.
83541M 11-1/2 11 AL 3 RH
96634M 11-1/2 11 AL 3 RH AVAIL.
83552M 11-3/4 10 AL 3 RH N.L.A.
96635M 11-3/4 10 AL 3 RH AVAIL.
83573M 11-3/4 8-3/4 AL 3 RH N.L.A.

2019 US Accessories Guide 923
