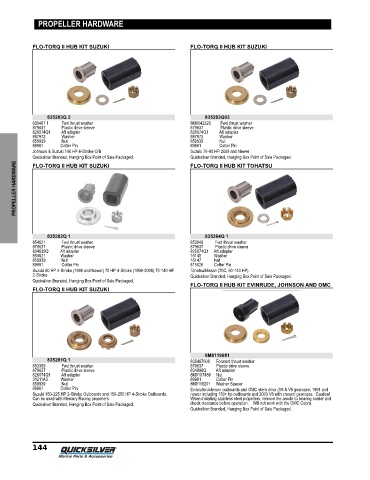

Page 149 - Quicksilver Marine Parts Guide (2020) - 8M0163275

PROPELLER HARDWARE

FLO-TORQ II HUB KIT SUZUKI FLO-TORQ II HUB KIT SUZUKI

835283Q 2 835283Q03
835467 1 Fwd thrust washer 8M0042329 Fwd thrust washer
879637 Plastic drive sleeve 879637 Plastic drive sleeve
826074Q1 Aft adapter 826074Q1 Aft adapter
887972 Washer 887972 Washer
859939 Nut 859939 Nut
89961 Cotter Pin 89961 Cotter Pin
Johnson & Suzuki 140 HP 4‑Stroke O/B Suzuki 70‑90 HP 2009 and Newer
Quicksilver Branded, Hanging Box Point of Sale Packaged. Quicksilver Branded, Hanging Box Point of Sale Packaged.
PROPELLER HARDWARE
FLO-TORQ II HUB KIT TOHATSU
FLO-TORQ II HUB KIT SUZUKI

835282Q 1 835284Q 1
854621 Fwd thrust washer 853948 Fwd thrust washer
879637 Plastic drive sleeve 879637 Plastic drive sleeve
834839Q Aft adapter 826074Q1 Aft adapter
854621 Washer 16140 Washer
859939 Nut 16147 Nut
89961 Cotter Pin 815026 Cotter Pin
Suzuki 60 HP 4‑Stroke (1998 and Newer) 70 HP 4‑Stroke (1998‑2008) 75‑140 HP Tohatsu/Nissan (70C, 90‑140 HP)
2‑Stroke Quicksilver Branded, Hanging Box Point of Sale Packaged.
Quicksilver Branded, Hanging Box Point of Sale Packaged.
FLO-TORQ II HUB KIT EVINRUDE, JOHNSON AND OMC
FLO-TORQ II HUB KIT SUZUKI

8M0119081
835281Q 1 835467008 Forward thrust washer
853359 Fwd thrust washer 879637 Plastic drive sleeve
879637 Plastic drive sleeve 834899Q Aft adapter
826074Q1 Aft adapter 8M0107489 Nut
31211A3 Washer 89961 Cotter Pin
859939 Nut 8M0118201 Washer Spacer
89961 Cotter Pin Evinrude/Johnson outboards and OMC stern drive (V6 & V8 gearcase, 1991 and
Suzuki 150‑225 HP 2‑Stroke Outboards and 150‑250 HP 4‑Stroke Outboards. newer including 150+ hp outboards and 2003 V6 with cresent gearcase. Caution!
Can be used with Mercury Racing propellers. When installing stainless steel propellers, remove the anode to bearing carrier and
Quicksilver Branded, Hanging Box Point of Sale Packaged. check clearance before operation. Will not work with the OMC Cobra.
Quicksilver Branded, Hanging Box Point of Sale Packaged.

144
