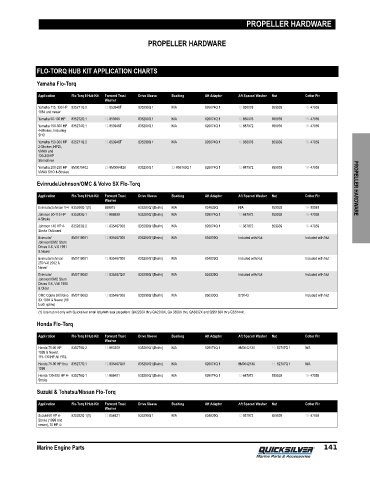

Page 146 - Quicksilver Marine Parts Guide (2020) - 8M0163275

PROPELLER HARDWARE

PROPELLER HARDWARE

FLO-TORQ HUB KIT APPLICATION CHARTS
Yamaha Flo‑Torq

Application Flo-Torq II Hub Kit Forward Trust Drive Sleeve Bushing Aft Adaptor Aft Spacer/ Washer Nut Cotter Pin
Washer
Yamaha 115, 130 HP 835271Q 2 12-853948T 835290Q 1 N/A 826074Q 1 12-850076 859939 18- 47959
1984 and newer
Yamaha 50-100 HP 835272Q 1 12-853555 835290Q 1 N/A 826074Q 1 12-850076 859939 18- 47959
Yamaha 150-300 HP 835274Q 1 12-853948T 835290Q 1 N/A 826074Q 1 12-887972 859939 18- 47959
4-Strokes, Including
SHO
Yamaha 150-300 HP 835271Q 2 12-853948T 835290Q 1 N/A 826074Q 1 12-850076 859939 18- 47959
2-Strokes, HPDI,
VMAX and
130-300HP
Sterndrives
Yamaha 200-250 HP 8M0075402 23-8M0064826 835290Q 1 23-856163Q 1 826074Q 1 12-887972 859939 18- 47959
VMAX SHO 4-Strokes
Evinrude/Johnson/OMC & Volvo SX Flo‑Torq PROPELLER HARDWARE

Application Flo-Torq II Hub Kit Forward Trust Drive Sleeve Bushing Aft Adaptor Aft Spacer/ Washer Nut Cotter Pin
Washer
Evinrude/Johnson V-4 835266Q 1(1) 859915 835290Q1(Delrin) N/A 834839Q N/A 859929 18- 89961
Johnson 90-115 HP 835283Q 1 12-888939 835290Q1(Delrin) N/A 826074Q 1 12-887972 859939 18- 47959
4-Stroke
Johnson 140 HP 4- 835283Q 2 12-835467008 835290Q1(Delrin) N/A 826074Q 1 12-887972 859939 18- 47959
Stroke Outboard
Evinrude/ 8M0119081 12-835467008 835290Q1(Delrin) N/A 834839Q Included with Nut Included with Nut
Johnson/OMC Stern
Drives V-6, V-8 1991
& Newer
Evinrude/Johnson 8M0119081 12-835467008 835290Q1(Delrin) N/A 834839Q Included with Nut Included with Nut
250 V-6 2002 &
Newer
Evinrude/ 8M0119082 12-835467Q01 835290Q1(Delrin) N/A 834839Q Included with Nut Included with Nut
Johnson/OMC Stern
Drives V-6, V-8/ 1990
& Older
OMC Cobra SX/Volvo 8M0119083 12-835467008 835290Q1(Delrin) N/A 850330Q 879143 Included with Nut
SX 1994 & Newer (19
tooth spline)
(1) Use hub kit only with Quicksilver small labyrinth seal propellers: QA2202X thru QA2208X, QA 3828X thru QA3832X and QS5136X thru QS5144X.
Honda Flo‑Torq

Application Flo-Torq II Hub Kit Forward Trust Drive Sleeve Bushing Aft Adaptor Aft Spacer/ Washer Nut Cotter Pin
Washer
Honda 75-90 HP 835279Q 2 12-853359 835290Q1(Delrin) N/A 826074Q 1 8M0042130 11- 52707Q 1 N/A
1999 & Newer,
115-130 HP All YRS.
Honda 75-90 HP thru 835277Q 1 12-835467Q01 835290Q1(Delrin) N/A 826074Q 1 8M0042130 11- 52707Q 1 N/A
1998
Honda 135-250 HP 4- 835278Q 1 12-888451 835290Q1(Delrin) N/A 826074Q 1 12-887972 859939 18- 47959
Stroke
Suzuki & Tohatsu/Nissan Flo‑Torq

Application Flo-Torq II Hub Kit Forward Trust Drive Sleeve Bushing Aft Adaptor Aft Spacer/ Washer Nut Cotter Pin
Washer
Suzuki 60 HP 4- 835282Q 1(1) 12-854621 835290Q 1 N/A 834839Q 12-887972 859939 18- 47959
Stroke (1998 and
newer), 70 HP 4-

Marine Engine Parts 141
