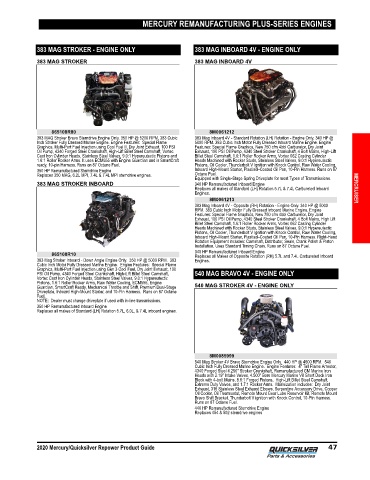

Page 64 - Repower Reference Guide (2020) 8M0149179

MERCURY REMANUFACTURING PLUS-SERIES ENGINES

383 MAG STROKER - ENGINE ONLY 383 MAG INBOARD 4V - ENGINE ONLY

383 MAG STROKER 383 MAG INBOARD 4V

865108R80 8M0061212
383 MAG Stroker Bravo Sterndrive Engine Only. 350 HP @ 5200 RPM, 383 Cubic 383 Mag Inboard 4V ‑ Standard Rotation (LH) Rotation ‑ Engine Only. 340 HP @
Inch Stroker Fully Dressed Marine Engine. Engine Features: Special Flame 5000 RPM. 383 Cubic Inch Motor Fully Dressed Inboard Marine Engine. Engine
Graphics, Multi‑Port Fuel Injection using Cool Fuel II, Dry Joint Exhaust, 100 PSI Features: Special Flame Graphics, New 750 cfm 4bbl Carburetor, Dry Joint
Oil Pump, 4340 Forged Steel Crankshaft, High‑Lift Billet Steel Camshaft, Vortec Exhaust, 100 PSI Oil Pump, 4340 Steel Stroker Crankshaft, 4 Bolt Mains, High‑Lift
Cast Iron Cylinder Heads, Stainless Steel Valves, 9.0:1 Hypereutectic Pistons and Billet Steel Camshaft, 1.6:1 Roller Rocker Arms, Vortec 062 Casting Cylinder
1.6:1 Roller Rocker Arms. It uses ECM555 with Engine Guardian and is SmartCraft Heads Machined with Rocker Studs, Stainless Steel Valves, 9.0:1 Hypereutectic
ready, 10‑pin Harness. Runs on 87 Octane Fuel. Pistons, Oil Cooler, Thunderbolt V Ignition with Knock Control, Raw Water Cooling,
350 HP Remanufactured Sterndrive Engine Inboard High‑Mount Starter, Plastisol‑Coated Oil Pan, 10‑Pin Harness. Runs on 87
Replaces 350 MAG, 6.2L MPI, 7.4L & 7.4L MPI sterndrive engines. Octane Fuel.
Equipped with Single‑Stage Spring Driveplate for most Types of Transmissions.
383 MAG STROKER INBOARD 340 HP Remanufactured Inboard Engine
Replaces all makes of Standard (LH) Rotation 5.7L & 7.4L Carbureted Inboard MERCRUISER
Engines.
8M0061213
383 Mag Inboard 4V ‑ Opposite (RH) Rotation ‑ Engine Only. 340 HP @ 5000
RPM. 383 Cubic Inch Motor Fully Dressed Inboard Marine Engine. Engine
Features: Special Flame Graphics, New 750 cfm 4bbl Carburetor, Dry Joint
Exhaust, 100 PSI Oil Pump, 4340 Steel Stroker Crankshaft, 4 Bolt Mains, High Lift
Billet Steel Camshaft, 1.6:1 Roller Rocker Arms, Vortec 062 Casting Cylinder
Heads Machined with Rocker Studs, Stainless Steel Valves, 9.0:1 Hypereutectic
Pistons, Oil Cooler, Thunderbolt V Ignition with Knock Control, Raw Water Cooling,
Inboard High‑Mount Starter, Plastisol‑Coated Oil Pan, 10‑Pin Harness. Right‑Hand
Rotation Equipment includes: Camshaft, Distributor, Seals, Crank Polish & Piston
Installation. Uses Standard Timing Chain. Runs on 87 Octane Fuel.
340 HP Remanufactured Inboard Engine
865108R10 Replaces all Makes of Opposite Rotation (RH) 5.7L and 7.4L Carbureted Inboard
383 Mag Stroker Inboard ‑ Down Angle Engine Only. 350 HP @ 5000 RPM. 383 Engines.
Cubic Inch Motor Fully Dressed Marine Engine. Engine Features: Special Flame
Graphics, Multi‑Port Fuel Injection using Gen 3 Cool Fuel, Dry Joint Exhaust, 100
PSI Oil Pump, 4340 Forged Steel Crankshaft, High‑Lift Billet Steel Camshaft, 540 MAG BRAVO 4V - ENGINE ONLY
Vortec Cast Iron Cylinder Heads, Stainless Steel Valves, 9.0:1 Hypereutectic
Pistons, 1.6:1 Roller Rocker Arms, Raw Water Cooling, ECM555, Engine
Guardian, SmartCraft Ready, Mechanical Throttle and Shift, Premium Dual‑Stage 540 MAG STROKER 4V - ENGINE ONLY
Driveplate, Inboard High‑Mount Starter, and 10‑Pin Harness. Runs on 87 Octane
Fuel.
NOTE: Dealer must change driveplate if used with in‑line transmissions.
350 HP Remanufactured Inboard Engine
Replaces all makes of Standard (LH) Rotation 5.7L, 6.0L, & 7.4L inboard engines.

8M0085999
540 Mag Stroker 4V Bravo Sterndrive Engine Only. 440 HP @ 4600 RPM. 540
Cubic Inch Fully Dressed Marine Engine. Engine Features: 4" Tall Flame Arrestor,
4340 Forged Steel 4.250" Stroker Crankshaft, Remanufactured GM Marine Iron
Heads with 2.19" Intake Valves, 4.500" Bore Mercury Marine V8 Short Deck Iron
Block with 4‑bolt Mains, 8.6:1 Forged Pistons, High‑Lift Billet Steel Camshaft,
Extreme Duty Valves, and 1.7:1 Rocker Arms. Marinization includes: Dry Joint
Exhaust, 316 Stainless Steel Exhaust Elbows, Serpentine Accessory Drive, Copper
Oil Cooler, Oil Thermostat, Remote Mount Gear Lube Reservoir Kit, Remote Mount
Bravo Shift Bracket, Thunderbolt V ignition with Knock Control, 10‑Pin Harness.
Runs on 87 Octane Fuel.
440 HP Remanufactured Sterndrive Engine
Replaces 454 & 502 sterndrive engines

2020 Mercury/Quicksilver Repower Product Guide 47
