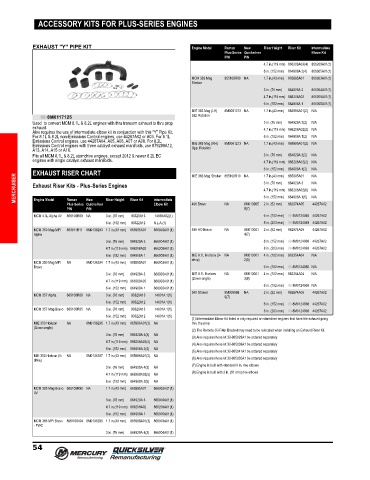

Page 71 - Repower Reference Guide (2020) 8M0149179

ACCESSORY KITS FOR PLUS-SERIES ENGINES

EXHAUST "Y" PIPE KIT Engine Model Reman New Riser Height Riser Kit Intermediate
Plus-Series Quicksilver Elbow Kit
P/N P/N
4.7 in.(119 mm) 866208A03(4) 866209A01(1)
6 in. (152 mm) 864908A 2(4) 866005A01(1)
MCM 383 Mag 865108R80 NA 1.7 in.(43 mm) 865995A01 866003A01(1)
Stroker
3 in. (76 mm) 864929A 3 866004A01(1)
4.7 in.(119 mm) 866208A02 866209A01(1)
6 in. (152 mm) 864908A 1 866005A01(1)
MIE 383 Mag (LH) 8M0061212 NA 1.7 in.(43 mm) 865995A01(2) N/A
98-8M0117125 Std. Rotation
Used to convert MCM 8.1L & 8.2L engines with thru transom exhaust to thru prop 3 in. (76 mm) 864929A 3(2) N/A
exhaust. 4.7 in.(119 mm) 866208A02(2) N/A
Also requires the use of intermediate elbow kit in conjunction with this "Y" Pipe Kit.
For 8.1L & 8.2L non‑Emissions Control engines, use 44267A02 or A03. For 8.1L 6 in. (152 mm) 864908A 1(2) N/A
Emissions Control engines, use 44267A04, A05, A06, A07 or A08. For 8.2L MIE 383 Mag (RH) 8M0061213 NA 1.7 in.(43 mm) 865995A01(2) N/A
Emissions Control engines with three catalyst exhaust manifolds, use 879288A12, Opp. Rotation
A13, A14, A15 or A16.
Fits all MCM 8.1L & 8.2L sterndrive engines, except 2012 & newer 8.2L EC 3 in. (76 mm) 864929A 3(2) N/A
engines with single catalyst exhaust manifolds. 4.7 in.(119 mm) 866208A02(2) N/A
6 in. (152 mm) 864908A 1(2) N/A
EXHAUST RISER CHART MIE 383 Mag Stroker 865108R10 NA 1.7 in.(43 mm) 865995A01 N/A
MERCRUISER Exhaust Riser Kits ‑ Plus‑Series Engines 3 in. (76 mm) 864929A 3 N/A

4.7 in.(119 mm) 866208A02(6) N/A
New
Engine Model
Reman
862974A05
2 in. (52 mm)
44267A02
Plus-Series Quicksilver Riser Height Riser Kit Intermediate 496 Bravo NA 8M013965 6 in. (152 mm) 864908A 1(6) N/A
Elbow Kit
P/N P/N 9(7)
MCM 4.3L Alpha 4V 865108R89 NA 3 in. (76 mm) 93320A13 14865A02(1) 6 in. (152 mm) 98-8M0124068 44267A02
6 in. (152 mm) 93322A12 N.L.A.(1) 8 in. (203 mm) 98-8M0124069 44267A02
MCM 350 Mag MPI 863611R11 8M0136293 1.7 in.(43 mm) 865995A01 866003A01(1) 496 HO Bravo NA 8M013001 2 in. (52 mm) 862974A05 44267A02
Alpha 4(7)
3 in. (76 mm) 864929A 3 866004A01(1) 6 in. (152 mm) 98-8M0124068 44267A02
4.7 in.(119 mm) 866208A02 866209A01(1) 8 in. (203 mm) 98-8M0124069 44267A02
6 in. (152 mm) 864908A 1 866005A01(1) MIE 8.1L Horizon (V- NA 8M013001 4 in. (102 mm) 862354A04 N/A
drive) 2(8)
MCM 350 Mag MPI NA 8M0136294 1.7 in.(43 mm) 865995A01 866003A01(1)
Bravo 6 in. (152 mm) 98-8M0124068 N/A
3 in. (76 mm) 864929A 3 866003A01(1) MIE 8.1L Horizon NA 8M013001 4 in. (102 mm) 862354A04 N/A
(Down-angle) 3(8)
4.7 in.(119 mm) 866208A02 866003A01(1)
6 in. (152 mm) 98-8M0124068 N/A
6 in. (152 mm) 864908A 1 866003A01(1)
540 Stroker 8M008599 NA 2 in. (52 mm) 862974A05 44267A02
MCM 357 Alpha 865108R88 NA 3 in. (76 mm) 93320A13 14801A 1(1) 9(7)
6 in. (152 mm) 93322A12 14801A 1(1) 6 in. (152 mm) 98-8M0124068 44267A02
MCM 357 Mag Bravo 865108R85 NA 3 in. (76 mm) 93320A13 14801A 1(1) 8 in. (203 mm) 98-8M0124069 44267A02
6 in. (152 mm) 93322A12 14801A 1(1)
(1) Intermediate Elbow Kit listed is only required on sterndrive engines that have the exhaust going
MIE 350 Horizon NA 8M0136296 1.7 in.(43 mm) 865996A01(3) NA thru the prop
(Down-angle)
(2) The Remote Oil Filter Bracket may need to be relocated when installing an Exhaust Riser Kit.
3 in. (76 mm) 864929A 4(3) NA
(3) Also requires hose kit 32-865029A1 be ordered separately
4.7 in.(119 mm) 866208A03(4) NA
(4) Also requires hose kit 32-865039A1 be ordered separately
6 in. (152 mm) 864908A 2(4) NA
(5) Also requires hose kit 32-865041A1 be ordered separately
MIE 350 Horizon (V- NA 8M0136297 1.7 in.(43 mm) 865996A01(3) NA (6) Also requires hose kit 32-865035A1 be ordered separately
drive)
3 in. (76 mm) 864929A 4(3) NA (7) Engine is built with standard 0 in. rise elbows
(8) Engine is built with 2 in. (51 mm) rise elbows
4.7 in.(119 mm) 866208A03(5) NA
6 in. (152 mm) 864908A 2(5) NA
MCM 383 Mag Bravo 865108R90 NA 1.7 in.(43 mm) 865995A01 866003A01(1)
4V
3 in. (76 mm) 864929A 3 866004A01(1)
4.7 in.(119 mm) 866208A02 866209A01(1)
6 in. (152 mm) 864908A 1 866005A01(1)
MCM 383 MPI Bravo 8M0109404 8M0136295 1.7 in.(43 mm) 865996A01(3) 866003A01(1)
- FWC
3 in. (76 mm) 864929A 4(3) 866004A01(1)
