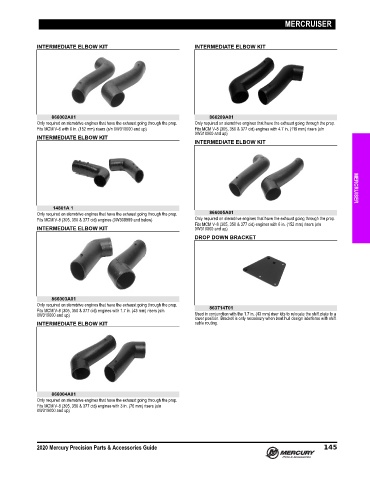

Page 154 - Latin America Accessories Guide (2020) - 8M0163252

MERCRUISER

INTERMEDIATE ELBOW KIT INTERMEDIATE ELBOW KIT

866002A01 866209A01
Only required on sterndrive engines that have the exhaust going through the prop. Only required on sterndrive engines that have the exhaust going through the prop.
Fits MCM V‑6 with 6 in. (152 mm) risers (s/n 0W310000 and up) Fits MCM V‑8 (305, 350 & 377 cid) engines with 4.7 in. (119 mm) risers (s/n
0W310000 and up)
INTERMEDIATE ELBOW KIT
INTERMEDIATE ELBOW KIT

14801A 1 MERCRUISER
Only required on sterndrive engines that have the exhaust going through the prop. 866005A01
Fits MCM V‑8 (305, 350 & 377 cid) engines (0W309999 and below) Only required on sterndrive engines that have the exhaust going through the prop.
Fits MCM V‑8 (305, 350 & 377 cid) engines with 6 in. (152 mm) risers (s/n
INTERMEDIATE ELBOW KIT 0W310000 and up)
DROP DOWN BRACKET

866003A01
Only required on sterndrive engines that have the exhaust going through the prop.
Fits MCM V‑8 (305, 350 & 377 cid) engines with 1.7 in. (43 mm) risers (s/n 863714T01
0W310000 and up) Used in conjunction with the 1.7 in. (43 mm) riser kits to relocate the shift plate to a
lower position. Bracket is only necessary when boat hull design interferes with shift
INTERMEDIATE ELBOW KIT cable routing.

866004A01
Only required on sterndrive engines that have the exhaust going through the prop.
Fits MCM V‑8 (305, 350 & 377 cid) engines with 3 in. (76 mm) risers (s/n
0W310000 and up)

2020 Mercury Precision Parts & Accessories Guide 145
