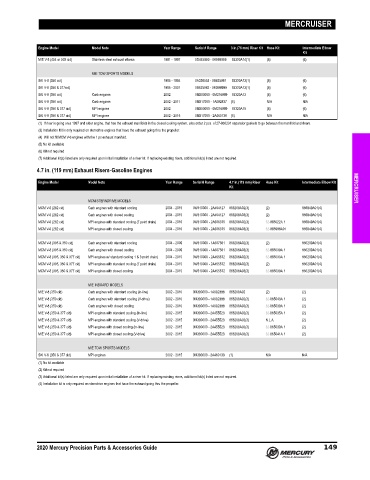

Page 158 - Latin America Accessories Guide (2020) - 8M0163252

MERCRUISER

Engine Model Model Note Year Range Serial # Range 3 in.(76 mm) Riser Kit Hose Kit Intermediate Elbow
Kit
MIE V-8 (454 or 502 cid) Stainless steel exhaust elbows 1991 - 1997 0D445800 - 0K999999 93320A14(1) (6) (6)

MIE TOW SPORTS MODELS
SKI V-8 (350 cid) 1985 - 1984 0A338553 - 0B525981 93320A13(1) (6) (6)
SKI V-8 (350 & 377cid) 1985 - 2001 0B525982 - 0M299999 93320A13(1) (6) (6)
SKI V-8 (350 cid) Carb engines 2002 0M300000 - 0M316999 93320A13 (6) (6)
SKI V-8 (350 cid) Carb engines 2002 - 2011 0M317000 - 1A092837 (5) N/A N/A
SKI V-8 (350 & 377 cid) MPI engines 2002 0M300000 - 0M316999 93320A15 (6) (6)
SKI V-8 (350 & 377 cid) MPI engines 2002 - 2015 0M317000 - 2A460138 (5) N/A N/A
(1) If riser is going on a 1997 and older engine, that has the exhaust manifolds in the closed cooling system, also order 2 pcs. of 27-860231 separator gaskets to go between the manifold and risers.
(3) Installation Kit is only required on sterndrive engines that have the exhaust going thru the propeller.
(4) Will not fit MCM V-6 engines with the 1 pc exhaust manifold.
(5) No kit available
(6) Kit not required
(7) Additional kit(s) listed are only required upon initial installation of a riser kit. If replacing existing risers, additional kit(s) listed are not required.
4.7 in. (119 mm) Exhaust Risers‑Gasoline Engines

Engine Model Model Note Year Range Serial # Range 4.7 in.(119 mm) Riser Hose Kit Intermediate Elbow Kit
Kit MERCRUISER

MCM STERNDRIVE MODELS
MCM V-6 (262 cid) Carb engines with standard cooling 2004 - 2015 0W310000 - 2A454127 866208A02(3) (2) 865949A01(4)
MCM V-6 (262 cid) Carb engines with closed cooling 2004 - 2015 0W310000 - 2A454127 866208A03(3) (2) 865949A01(4)
MCM V-6 (262 cid) MPI engines with standard cooling (7 point drain) 2004 - 2016 0W310000 - 2A506375 866208A02(3) 32-865022A 1 865949A01(4)
MCM V-6 (262 cid) MPI engines with closed cooling 2004 - 2016 0W310000 - 2A506375 866208A03(3) 32-865998A01 865949A01(4)

MCM V-8 (305 & 350 cid) Carb engines with standard cooling 2004 - 2009 0W310000 - 1A607561 866208A02(3) (2) 866209A01(4)
MCM V-8 (305 & 350 cid) Carb engines with closed cooling 2004 - 2009 0W310000 - 1A607561 866208A03(3) 32-865039A 1 866209A01(4)
MCM V-8 (305, 350 & 377 cid) MPI engines w/ standard cooling 1 & 3 point drain) 2004 - 2015 0W310000 - 2A455872 866208A02(3) 32-865033A 1 866209A01(4)
MCM V-8 (305, 350 & 377 cid) MPI engines with standard cooling (7 point drain) 2004 - 2015 0W310000 - 2A455872 866208A02(3) (2) 866209A01(4)
MCM V-8 (305, 350 & 377 cid) MPI engines with closed cooling 2004 - 2015 0W310000 - 2A455872 866208A03(3) 32-865039A 1 866209A01(4)

MIE INBOARD MODELS
MIE V-8 (350 cid) Carb engines with standard cooling (in-line) 2002 - 2010 0M390000 - 1A092388 866208A02 (2) (2)
MIE V-8 (350 cid) Carb engines with standard cooling (V-drive) 2002 - 2010 0M390000 - 1A092388 866208A02(3) 32-865043A 1 (2)
MIE V-8 (350 cid) Carb engines with closed cooling 2002 - 2010 0M390000 - 1A092388 866208A03(3) 32-865039A 1 (2)
MIE V-8 (350 & 377 cid) MPI engines with standard cooling (in-line) 2002 - 2015 0M390000 - 2A455523 866208A02(3) 32-865035A 1 (2)
MIE V-8 (350 & 377 cid) MPI engines with standard cooling (V-drive) 2002 - 2015 0M390000 - 2A455523 866208A02(3) N.L.A. (2)
MIE V-8 (350 & 377 cid) MPI engines with closed cooling (in-line) 2002 - 2015 0M390000 - 2A455523 866208A03(3) 32-865039A 1 (2)
MIE V-8 (350 & 377 cid) MPI engines with closed cooling (V-drive) 2002 - 2015 0M390000 - 2A455523 866208A03(3) 32-865041A 1 (2)

MIE TOW SPORTS MODELS
SKI V-8 (350 & 377 cid) MPI engines 2002 - 2015 0M390000 - 2A460138 (1) N/A N/A
(1) No kit available
(2) Kit not required
(3) Additional kit(s) listed are only required upon initial installation of a riser kit. If replacing existing risers, additional kit(s) listed are not required.
(4) Installation kit is only required on sterndrive engines that have the exhaust going thru the propeller.

2020 Mercury Precision Parts & Accessories Guide 149
