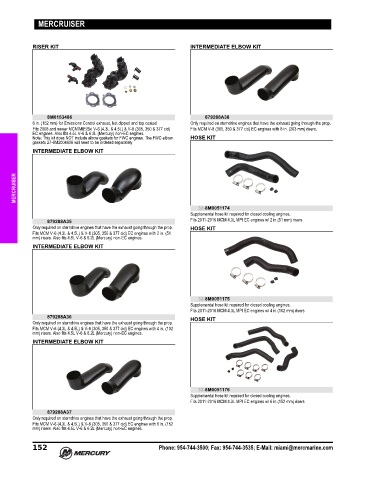

Page 161 - Latin America Accessories Guide (2020) - 8M0163252

MERCRUISER

RISER KIT INTERMEDIATE ELBOW KIT

8M0153486 879288A38
6 in. (152 mm) for Emissions Control exhaust, hot dipped and top coated Only required on sterndrive engines that have the exhaust going through the prop.
Fits 2008 and newer MCM/MIE/Ski V‑6 (4.3L & 4.5L) & V‑8 (305, 350 & 377 cid) Fits MCM V‑8 (305, 350 & 377 cid) EC engines with 8 in. (203 mm) risers.
EC engines. Also fits 4.5L V‑6 & 6.2L (Mercury) non‑EC engines.
Note: This kit does NOT include elbow gaskets for FWC engines. The FWC elbow HOSE KIT
gaskets 27‑8M2004606 will need to be ordered separately
INTERMEDIATE ELBOW KIT

MERCRUISER

32-8M0051174
Supplemental hose kit required for closed cooling engines.
879288A35 Fits 2011‑2016 MCM 4.3L MPI EC engines w/ 2 in.(51 mm) risers
Only required on sterndrive engines that have the exhaust going through the prop. HOSE KIT
Fits MCM V‑6 (4.3L & 4.5L) & V‑8 (305, 350 & 377 cid) EC engines with 2 in. (51
mm) risers. Also fits 4.5L V‑6 & 6.2L (Mercury) non‑EC engines.
INTERMEDIATE ELBOW KIT

32-8M0051175
Supplemental hose kit required for closed cooling engines.
Fits 2011‑2016 MCM 4.3L MPI EC engines w/ 4 in.(102 mm) risers
879288A36 HOSE KIT
Only required on sterndrive engines that have the exhaust going through the prop.
Fits MCM V‑6 (4.3L & 4.5L) & V‑8 (305, 350 & 377 cid) EC engines with 4 in. (102
mm) risers. Also fits 4.5L V‑6 & 6.2L (Mercury) non‑EC engines.
INTERMEDIATE ELBOW KIT

32-8M0051176
Supplemental hose kit required for closed cooling engines.
Fits 2011‑2016 MCM 4.3L MPI EC engines w/ 6 in.(152 mm) risers
879288A37
Only required on sterndrive engines that have the exhaust going through the prop.
Fits MCM V‑6 (4.3L & 4.5L) & V‑8 (305, 350 & 377 cid) EC engines with 6 in. (152
mm) risers. Also fits 4.5L V‑6 & 6.2L (Mercury) non‑EC engines.

152 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
