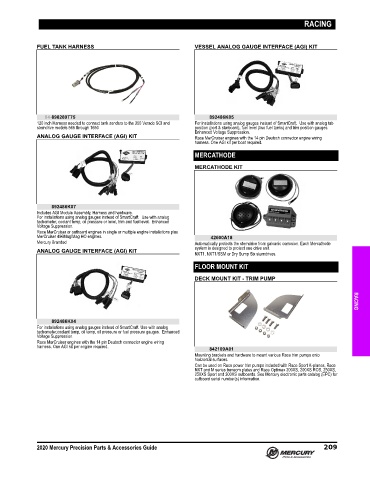

Page 218 - Latin America Accessories Guide (2020) - 8M0163252

RACING

FUEL TANK HARNESS VESSEL ANALOG GAUGE INTERFACE (AGI) KIT

84-898289T75 892486K05
120 inch Harness needed to connect tank senders to the 350 Verado SCI and For installations using analog gauges instead of SmartCraft. Use with analog tab
sterndrive models 565 through 1650 position (port & starboard), fuel level (two fuel tanks) and trim position gauges.
Enhanced Voltage Suppression.
ANALOG GAUGE INTERFACE (AGI) KIT Race MerCruiser engines with the 14 pin Deutsch connector engine wiring
harness. One AGI kit per boat required.
MERCATHODE

MERCATHODE KIT

892486K07
Includes AGI Module Assembly, Harness and hardware.
For installations using analog gauges instead of SmartCraft. Use with analog
tachometer, coolant temp, oil pressure or level, trim and fuel level. Enhanced
Voltage Suppression.
Race MerCruiser or outboard engines in single or multiple engine installations plus
MerCruiser 496Mag/Mag HO engines. 42600A18
Mercury Branded Automatically protects the sterndrive from galvanic corrosion. Each Mercathode
ANALOG GAUGE INTERFACE (AGI) KIT system is designed to protect one drive unit.
NXT1, NXT1/SSM or Dry Sump Six sterndrives.
FLOOR MOUNT KIT

DECK MOUNT KIT - TRIM PUMP

892486K04 RACING
For installations using analog gauges instead of SmartCraft. Use with analog
tachometer,coolant temp, oil temp, oil pressure or fuel pressure gauges. Enhanced
Voltage Suppression.
Race MerCruiser engines with the 14 pin Deutsch connector engine wiring
harness. One AGI kit per engine required.
842109A01
Mounting brackets and hardware to mount various Race trim pumps onto
horizontal surfaces.
Can be used on Race power trim pumps included with Race Sport K‑planes, Race
NXT and M series transom plates and Race Optimax 200XS, 200XS ROS, 250XS,
250XS Sport and 300XS outboards. See Mercury electronic parts catalog (EPC) for
outboard serial number(s) information.

2020 Mercury Precision Parts & Accessories Guide 209
