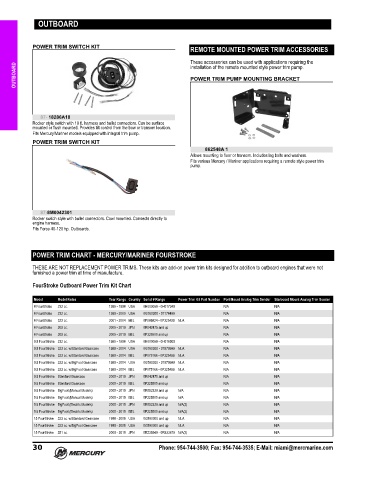

Page 39 - Latin America Accessories Guide (2020) - 8M0163252

OUTBOARD

POWER TRIM SWITCH KIT
REMOTE MOUNTED POWER TRIM ACCESSORIES
These accessories can be used with applications requiring the
OUTBOARD POWER TRIM PUMP MOUNTING BRACKET
installation of the remote mounted style power trim pump.

87- 18286A18
Rocker style switch with 10 ft. harness and bullet connectors. Can be surface
mounted or flush mounted. Provides tilt control from the bow or transom location.
Fits Mercury/Mariner models equipped with integral trim pump.
POWER TRIM SWITCH KIT
862548A 1
Allows mounting to floor or transom. Includes lag bolts and washers.
Fits various Mercury / Mariner applications requiring a remote style power trim
pump.

87-8M0042301
Rocker switch style with bullet connectors. Cowl mounted. Connects directly to
engine harness.
Fits Force 40‑120 hp. Outboards.

POWER TRIM CHART - MERCURY/MARINER FOURSTROKE
THESE ARE NOT REPLACEMENT POWER TRIMS. These kits are add‑on power trim kits designed for addition to outboard engines that were not
furnished a power trim at time of manufacture.
FourStroke Outboard Power Trim Kit Chart

Model Model Notes Year Range Country Serial # Range Power Trim Kit Part Number Port Mount Analog Trim Sender Starboard Mount Analog Trim Sender
8 FourStroke 232 cc. 1995 - 1998 USA 0H000058 - 0H017349 N/A N/A
8 FourStroke 232 cc. 1999 - 2000 USA 0G760300 - 0T178499 N/A N/A
8 FourStroke 323 cc. 2001 - 2004 BEL 0P086824 - 0P325499 NLA N/A N/A
8 FourStroke 209 cc. 2005 - 2019 JPN 0R042475 and up N/A N/A
8 FourStroke 209 cc. 2005 - 2019 BEL 0P325500 and up N/A N/A
9.9 FourStroke 232 cc. 1995 - 1998 USA 0H000058 - 0H016909 N/A N/A
9.9 FourStroke 323 cc. w/Standard Gearcase 1999 - 2004 USA 0G760300 - 0T979999 NLA N/A N/A
9.9 FourStroke 323 cc. w/Standard Gearcase 1999 - 2004 BEL 0P075166 - 0P325499 NLA N/A N/A
9.9 FourStroke 323 cc. w/BigFoot Gearcase 1999 - 2004 USA 0G760300 - 0T979999 NLA N/A N/A
9.9 FourStroke 323 cc. w/BigFoot Gearcase 1999 - 2004 BEL 0P075166 - 0P325499 NLA N/A N/A
9.9 FourStroke Standard Gearcase 2005 - 2019 JPN 0R042475 and up N/A N/A
9.9 FourStroke Standard Gearcase 2005 - 2019 BEL 0P325500 and up N/A N/A
9.9 FourStroke BigFoot (Manual Models) 2005 - 2019 JPN 0R052328 and up N/A N/A N/A
9.9 FourStroke BigFoot (Manual Models) 2005 - 2019 BEL 0P325500 and up N/A N/A N/A
9.9 FourStroke BigFoot (Electric Models) 2005 - 2019 JPN 0R052328 and up N/A(3) N/A N/A
9.9 FourStroke BigFoot (Electric Models) 2005 - 2019 BEL 0P325500 and up N/A(3) N/A N/A
15 FourStroke 323 cc. w/Standard Gearcase 1998 - 2008 USA 0G590000 and up NLA N/A N/A
15 FourStroke 323 cc. w/BigFoot Gearcase 1998 - 2008 USA 0G590000 and up NLA N/A N/A
15 FourStroke 351 cc. 2008 - 2019 JPN 0R235949 - 0R833819 N/A(2) N/A N/A
30 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
