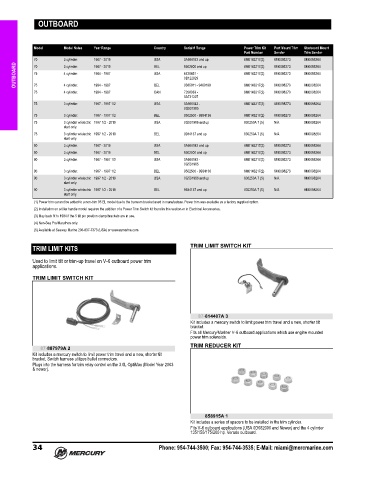

Page 43 - Latin America Accessories Guide (2020) - 8M0163252

OUTBOARD

Model Model Notes Year Range Country Serial # Range Power Trim Kit Port Mount Trim Starboard Mount
Part Number Sender Trim Sender
70 3 cylinder. 1987 - 2019 USA 0A966142 and up 8M0143217(2) 8M0098273 8M0098264
OUTBOARD 75 4 cylinder. 1984 - 1987 USA 6428681 - 8M0143217(2) 8M0098273 8M0098264
1987 - 2019
3 cylinder.
8M0098273
8M0098264
8M0143217(2)
BEL
9502500 and up
70
0B122929
75
8M0143217(2)
CAN
7208333 -
1984 - 1987
8M0098264
75 4 cylinder. 1984 - 1987 BEL 9385911 - 9469199 8M0143217(2) 8M0098273 8M0098264
8M0098273
4 cylinder.
0A721307
75 3 cylinder. 1987 - 1997 1/2 USA 0A966142 - 8M0143217(2) 8M0098273 8M0098264
0G531985
75 3 cylinder. 1987 - 1997 1/2 BEL 9502500 - 9934136 8M0143217(2) 8M0098273 8M0098264
75 3 cylinder w/electric 1997 1/2 - 2019 USA 0G531986 and up 830250A 7 (5) N/A 8M0098264
start only.
75 3 cylinder w/electric 1997 1/2 - 2019 BEL 9934137 and up 830250A 7 (5) N/A 8M0098264
start only.
80 3 cylinder. 1987 - 2019 USA 0A966142 and up 8M0143217(2) 8M0098273 8M0098264
80 3 cylinder. 1987 - 2019 BEL 9502500 and up 8M0143217(2) 8M0098273 8M0098264
90 3 cylinder. 1987 - 1997 1/2 USA 0A966142 - 8M0143217(2) 8M0098273 8M0098264
0G531985
90 3 cylinder. 1987 - 1997 1/2 BEL 9502500 - 9934136 8M0143217(2) 8M0098273 8M0098264
90 3 cylinder w/electric 1997 1/2 - 2019 USA 0G531986 and up 830250A 7 (5) N/A 8M0098264
start only.
90 3 cylinder w/electric 1997 1/2 - 2019 BEL 9934137 and up 830250A 7 (5) N/A 8M0098264
start only.
(1) Power trim can not be added to a non-trim 35 EL model due to the transom bracket used in manufacture. Power trim was available as a factory supplied option.
(2) Installation on a tiller handle model requires the addition of a Power Trim Switch kit found in this section or in Electrical Accessories.
(3) May back fit to 1984 if the 5 tilt pin position clamp brackets are in use.
(4) Non-Sea Pro/Marathon only.
(5) Available at Seaway Marine 206-937-7373 (USA) or seawaymarine.com
TRIM LIMIT KITS TRIM LIMIT SWITCH KIT
Used to limit tilt or trim‑up travel on V‑6 outboard power trim
applications.
TRIM LIMIT SWITCH KIT

87-814407A 3
Kit includes a mercury switch to limit power trim travel and a new, shorter tilt
bracket.
Fits all Mercury/Mariner V‑6 outboard applications which use engine mounted
power trim solenoids.
TRIM REDUCER KIT
87-887979A 2
Kit includes a mercury switch to limit power trim travel and a new, shorter tilt
bracket. Switch harness utilizes bullet connectors.
Plugs into the harness for trim relay control on the 3.0L OptiMax (Model Year 2003
& newer).

858915A 1
Kit includes a series of spacers to be installed in the trim cylinder.
Fits V‑6 outboard applications (USA 0D082000 and Newer) and the 4 cylinder
135/150/175/200 hp. Verado outboard.
34 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
