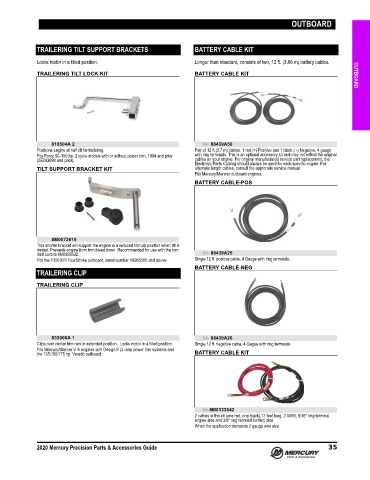

Page 44 - Latin America Accessories Guide (2020) - 8M0163252

OUTBOARD

TRAILERING TILT SUPPORT BRACKETS BATTERY CABLE KIT

Locks motor in a tilted position. Longer than standard, consists of two, 12 ft. (3.66 m) battery cables.

TRAILERING TILT LOCK KIT BATTERY CABLE KIT OUTBOARD

819504A 2 84- 88439A50
Positions engine at half tilt for trailering. Pair of 12 ft.(3.7 m) cables, 1 red (+) Positive and 1 black ( ‑) Negative, 4 gauge
Fits Force 90‑150 hp. 2 cycle models with or without power trim, 1994 and prior with ring terminals. This is an optional accessory kit and may not reflect the original
(0E093699 and prior). cables on your engine. For original manufactured service part replacement, the
Electronic Parts Catalog should always be used for each specific engine. For
TILT SUPPORT BRACKET KIT alternate length cables, consult the approriate service manual.
Fits Mercury/Mariner outboard engines.
BATTERY CABLE-POS

8M0072610
This shorter bracket will support the engine in a reduced trim up position when tilt is
limited. Prevents engine from trim bleed down. Recommended for use with the trim
limit control 8M0059532. 84- 88439A25
Fits the F150 EFI FourStroke outboard, serial number 1B905505 and above. Single 12 ft. positive cable. 4 Gauge with ring terminals.
BATTERY CABLE-NEG
TRAILERING CLIP
TRAILERING CLIP

833006A 1 84- 88439A26
Clips over center trim ram in extended position. Locks motor in a tilted position. Single 12 ft. negative cable. 4 Gague with ring terminals
Fits Mercury/Mariner V‑6 engines with Design II (3 ram) power trim systems and
the 135/150/175 hp. Verado outboard. BATTERY CABLE KIT

84-8M0133542
2 cables in the kit (one red, one black),12 feet long, 2 AWG, 5/16" ring terminal
engine side and 3/8" ring terminal battery side
When the application demands 2 gauge wire size.

2020 Mercury Precision Parts & Accessories Guide 35
