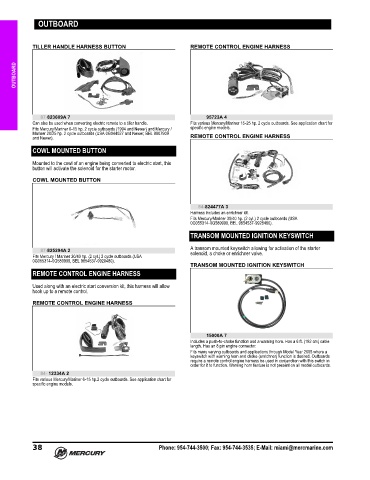

Page 47 - Latin America Accessories Guide (2020) - 8M0163252

OUTBOARD

TILLER HANDLE HARNESS BUTTON REMOTE CONTROL ENGINE HARNESS

OUTBOARD

87-823609A 7 95723A 4
Can also be used when converting electric remote to a tiller handle. Fits various Mercury/Mariner 15‑25 hp. 2 cycle outboards. See application chart for
Fits Mercury/Mariner 6‑15 hp. 2 cycle outboards (1994 and Newer) and Mercury / specific engine models.
Mariner 20/25 hp. 2 cycle outboards (USA 0G044027 and Newer, BEL 9807909
and Newer). REMOTE CONTROL ENGINE HARNESS
COWL MOUNTED BUTTON

Mounted to the cowl of an engine being converted to electric start, this
button will activate the solenoid for the starter motor.
COWL MOUNTED BUTTON

84-824477A 3
Harness includes an enrichner kit.
Fits Mercury/Mariner 30/40 hp. (2 cyl.) 2 cycle outboards (USA
0G055314‑0G589999, BEL 9854537‑9928480).

TRANSOM MOUNTED IGNITION KEYSWITCH
A transom mounted keyswitch allowing for activation of the starter
87-825294A 2 solenoid, a choke or enrichner valve.
Fits Mercury / Mariner 30/40 hp. (2 cyl.) 2 cycle outboards (USA
0G055314‑0G589999, BEL 9854537‑9928480).
TRANSOM MOUNTED IGNITION KEYSWITCH
REMOTE CONTROL ENGINE HARNESS
Used along with an electric start conversion kit, this harness will allow
hook up to a remote control.

REMOTE CONTROL ENGINE HARNESS

15000A 7
Includes a push‑to‑choke function and a warning horn. Has a 6 ft. (182 cm) cable
length. Has an 8 pin engine connector.
Fits many varying outboards and applications through Model Year 2005 where a
keyswitch with warning horn and choke (enrichner) function is desired. Outboards
require a remote control engine harness be used in conjunction with this switch in
order for it to function. Warning horn feature is not present on all model outboards.
84- 12334A 2
Fits various Mercury/Mariner 6‑15 hp.2 cycle outboards. See application chart for
specific engine models.
