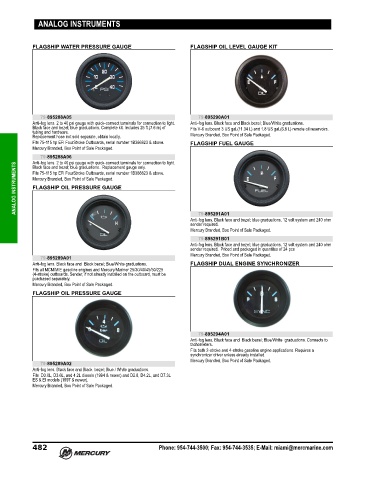

Page 491 - Latin America Accessories Guide (2020) - 8M0163252

ANALOG INSTRUMENTS

FLAGSHIP WATER PRESSURE GAUGE FLAGSHIP OIL LEVEL GAUGE KIT

79-895288A05 79-895290A01
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for connection to light. Anti‑fog lens. Black face and Black bezel; Blue/White graduations.
Black face and bezel; blue graduations. Complete kit. Includes 25 ft.(7.6 m) of Fits V‑6 outboard 3 US gal.(11.34 L) and 1.8 US gal.(6.8 L) remote oil reservoirs.
tubing and hardware.
Replacement hose not sold separate, obtain locally. Mercury Branded, Box Point of Sale Packaged.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above. FLAGSHIP FUEL GAUGE
Mercury Branded, Box Point of Sale Packaged.
79-895288A06
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for connection to light.
ANALOG INSTRUMENTS Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
Black face and bezel; blue graduations.. Replacement gauge only.
Mercury Branded, Box Point of Sale Packaged.
FLAGSHIP OIL PRESSURE GAUGE

79-895291A01
Anti‑fog lens. Black face and bezel; blue graduations. 12 volt system and 240 ohm
sender required.
Mercury Branded, Box Point of Sale Packaged.
79-895291B01
Anti‑fog lens. Black face and bezel; blue graduations. 12 volt system and 240 ohm
sender required. Priced and packaged in quantites of 24 pcs
Mercury Branded, Box Point of Sale Packaged.
79-895289A01
Anti‑fog lens. Black face and Black bezel; Blue/White graduations. FLAGSHIP DUAL ENGINE SYNCHRONIZER
Fits all MCM/MIE gasoline engines and Mercury/Mariner 25/30/40/45/50/225
(4‑stroke) outboards. Sender, if not already installed on the outboard, must be
purchased separately.
Mercury Branded, Box Point of Sale Packaged.
FLAGSHIP OIL PRESSURE GAUGE

79-895294A01
Anti‑fog lens. Black face and Black bezel; Blue/White graduations. Connects to
tachometers.
Fits both 2‑stroke and 4‑stroke gasoline engine applications. Requires a
synchronizer driver unless already installed.
Mercury Branded, Box Point of Sale Packaged.
79-895289A02
Anti‑fog lens. Black face and Black bezel; Blue / White graduations.
Fits D3.0L, D3.6L, and 4.2L diesels (1994 & newer) and D2.8, D4.2L, and D7.3L
ES & EI models (1997 & newer).
Mercury Branded, Box Point of Sale Packaged.

482 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
