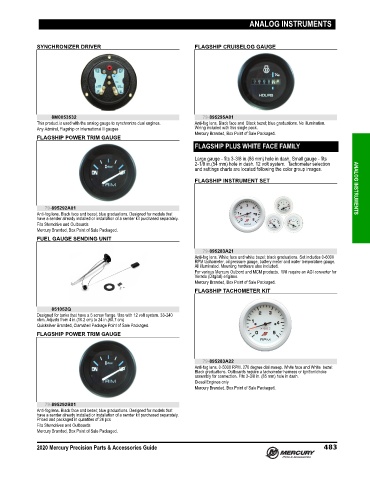

Page 492 - Latin America Accessories Guide (2020) - 8M0163252

ANALOG INSTRUMENTS

SYNCHRONIZER DRIVER FLAGSHIP CRUISELOG GAUGE

8M0053532 79-895295A01
This product is used with the analog gauge to synchronize dual engines. Anti‑fog lens. Black face and Black bezel; blue graduations. No illumination.
Any Admiral, Flagship or International II gauges Wiring included with this single pack.
Mercury Branded, Box Point of Sale Packaged.
FLAGSHIP POWER TRIM GAUGE
FLAGSHIP PLUS WHITE FACE FAMILY

Large gauge ‑ fits 3‑3/8 in.(86 mm) hole in dash. Small gauge ‑ fits
2‑1/8 in.(54 mm) hole in dash. 12 volt system. Tachometer selection
and settings charts are located following the color group images.

FLAGSHIP INSTRUMENT SET ANALOG INSTRUMENTS

79-895292A01
Anti‑fog lens. Black face and bezel; blue graduations. Designed for models that
have a sender already installed or installation of a sender kit purchased separately.
Fits Sterndrive and Outboards
Mercury Branded, Box Point of Sale Packaged.
FUEL GAUGE SENDING UNIT
79-895283A21
Anti‑fog lens. White face and white bezel; black graduations. Set includes 0‑6000
RPM tachometer, oil pressure gauge, battery meter and water temperature gauge.
All illuminated. Mounting hardware also included.
For various Mercury Outbord and MCM products. Will require an AGI converter for
Verado (Ditgital) engines.
Mercury Branded, Box Point of Sale Packaged.
FLAGSHIP TACHOMETER KIT

851052Q
Designed for tanks that have a 5 screw flange. Use with 12 volt system. 33‑240
ohm. Adjusts from 4 in.(10.2 cm) to 24 in.(60.7 cm)
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
FLAGSHIP POWER TRIM GAUGE

79-895283A22
Anti‑fog lens. 0‑5000 RPM. 270 degree dial sweep. White face and White bezel:
Black graduations. Outboards require a tachometer harness or ignition/choke
assembly for connection. Fits 3‑3/8 in. (85 mm) hole in dash.
Diesel Engines only
Mercury Branded, Box Point of Sale Packaged.

79-895292B01
Anti‑fog lens. Black face and bezel; blue graduations. Designed for models that
have a sender already installed or installation of a sender kit purchased separately.
Priced and packaged in quantites of 24 pcs
Fits Sterndrives and Outboards
Mercury Branded, Box Point of Sale Packaged.

2020 Mercury Precision Parts & Accessories Guide 483
