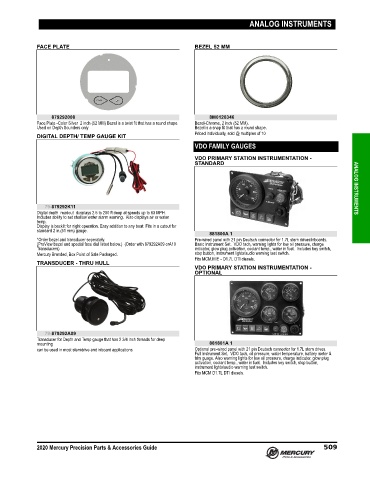

Page 518 - Latin America Accessories Guide (2020) - 8M0163252

ANALOG INSTRUMENTS

FACE PLATE BEZEL 52 MM

879292008 8M0120346
Face Plate ‑Color Silver 2 inch (52 MM) Bezel is a twist fit that has a round shape. Bezel‑Chrome, 2 inch (52 MM).
Used on Depth Sounders only Bezel is a snap fit that has a round shape.
Priced individually, sold @ multiples of 10
DIGITAL DEPTH/ TEMP GAUGE KIT
VDO FAMILY GAUGES

VDO PRIMARY STATION INSTRUMENTATION -
STANDARD

79-879292K11 ANALOG INSTRUMENTS
Digital depth readout dusplays 2.5 to 200 ft deep at speeds up to 63 MPH.
Includes ability to set shallow water alarm warning. Also displays air or water
temp.
Display is backlit for night operation. Easy addition to any boat. Fits in a cutout for
standard 2 in.(51 mm) gauge.
881800A 1
*Order bezel and transducer seperately. Pre‑wired panel with 21 pin Deutsch connector for 1.7L stern drives/inboards.
(ProView bezel and special face dial listed below.) (Order with 879292A09 orA10 Basic Instrument Set. VDO tach, warning lights for low oil pressure, charge
Transducers) indicator, glow plug activation, coolant temp., water in fuel. Includes key switch,
Mercury Branded, Box Point of Sale Packaged. stop button, instrument lights/audio warning test switch.
Fits MCM.MIE ‑ D1.7L DTI diesels.
TRANSDUCER - THRU HULL
VDO PRIMARY STATION INSTRUMENTATION -
OPTIONAL

79-879292A09
Transducer for Depth and Temp gauge that has 2 3/4 inch threads for deep
mounting 881801A 1
can be used in most sterndrive and inboard applications Optional pre‑wired panel with 21 pin Deutsch connector for 1.7L stern drives.
Full Instrument Set. VDO tach, oil pressure, water temperature, battery meter &
trim guage. Also warning lights for low oil pressure, charge indicator, glow plug
activation, coolant temp., water in fuel. Includes key switch, stop button,
instrument lights/audio warning test switch.
Fits MCM D1.7L DTI diesels.

2020 Mercury Precision Parts & Accessories Guide 509
