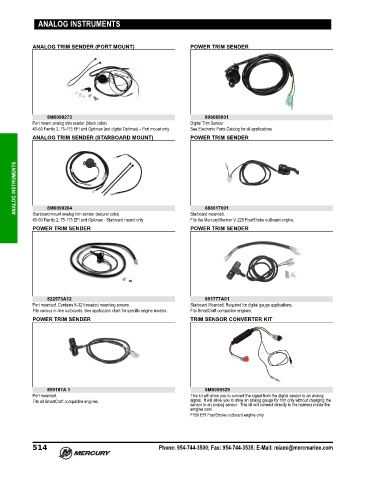

Page 523 - Latin America Accessories Guide (2020) - 8M0163252

ANALOG INSTRUMENTS

ANALOG TRIM SENDER (PORT MOUNT) POWER TRIM SENDER

8M0098273 896688001
Port mount analog trim sender (black color) Digital Trim Sender
40‑60 Family 2, 75‑115 EFI and Optimax (not digital Optimax) ‑ Port mount only See Electronic Parts Catalog for all applications
ANALOG TRIM SENDER (STARBOARD MOUNT) POWER TRIM SENDER

ANALOG INSTRUMENTS

888617001
8M0098264
Starboard mount analog trim sender (natural color)
Fits the Mercury/Mariner V‑225 FourStroke outboard engine.
40‑60 Family 2, 75‑115 EFI and Optimax ‑ Starboard mount only Starboard mounted.
POWER TRIM SENDER POWER TRIM SENDER

822573A12 891777A01
Port mounted. Contains 6‑32 threaded mounting screws. Starboard Mounted. Required for digital gauge applications.
Fits various in‑line outboards. See application chart for specific engine models. Fits SmartCraft compatible engines.
POWER TRIM SENDER TRIM SENSOR CONVERTER KIT

859187A 1 8M0059529
Port mounted. This kit will allow you to convert the signal from the digital sensor to an analog
Fits all SmartCraft compatible engines. signal. It will allow you to drive an analog gauge for trim only without changing the
sensor to an analog sensor. This kit will connect directly to the harness inside the
emgine cowl.
F150 EFI FourStroke outboard engine only
