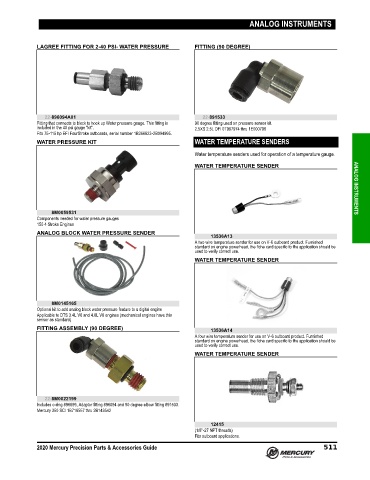

Page 520 - Latin America Accessories Guide (2020) - 8M0163252

ANALOG INSTRUMENTS

LAGREE FITTING FOR 2-40 PSI- WATER PRESSURE FITTING (90 DEGREE)

22-896094A01 22-891533
Fitting that connects to block to hook up Water pressure gauge. This fitting is 90 degree fitting used on pressure sensor kit.
included in the 40 psi gauge "kit". 2.5XS 2.5L DFI 0T997974 thru 1E000796
Fits 75‑115 hp EFI FourStroke outboards, serial number 1B366823‑2B094995.
WATER PRESSURE KIT WATER TEMPERATURE SENDERS
Water temperature senders used for operation of a temperature gauge.

WATER TEMPERATURE SENDER ANALOG INSTRUMENTS

8M0059531
Components needed for water pressure gauges
150 4 Stroke Engines
ANALOG BLOCK WATER PRESSURE SENDER
13536A13
A two wire temperature sender for use on V‑6 outboard product. Furnished
standard on engine powerhead, the fiche card specific to the application should be
used to verify correct use.
WATER TEMPERATURE SENDER

8M0145165
Optional kit to add analog block water pressure feature to a digital engine
Applicable to DTS 3.4L V6 and 4.6L V8 engines (mechanical engines have this
sensor as standard)
FITTING ASSEMBLY (90 DEGREE) 13536A14
A four wire temperature sender for use on V‑6 outboard product. Furnished
standard on engine powerhead, the fiche card specific to the application should be
used to verify correct use.
WATER TEMPERATURE SENDER

22-8M0022199
Includes o‑ring 896699, Adaptor fitting 896094 and 90 degree elbow fitting 891533.
Mercury 350 SCI 1B716557 thru 2B143542

12415
(1/8"‑27 NPT threads)
Fits outboard applications.

2020 Mercury Precision Parts & Accessories Guide 511
