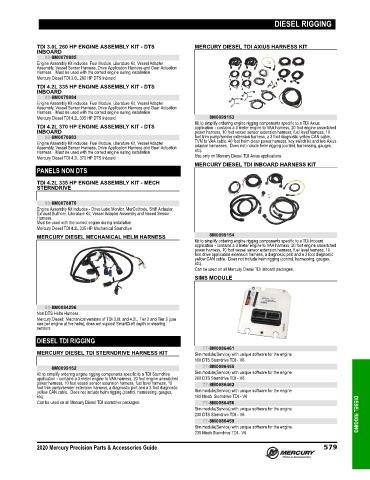

Page 588 - Latin America Accessories Guide (2020) - 8M0163252

DIESEL RIGGING

TDI 3.0L 260 HP ENGINE ASSEMBLY KIT - DTS MERCURY DIESEL TDI AXIUS HARNESS KIT
INBOARD
98-8M0078885
Engine Assembly Kit includes Fuel Module, Literature Kit, Vessel Adapter
Assembly, Vessel Sensor Harness, Drive Application Harness and Gear Actuation
Harness. Must be used with the correct engine during installation
Mercury Diesel TDI 3.0L 260 HP DTS Inboard
TDI 4.2L 335 HP ENGINE ASSEMBLY KIT - DTS
INBOARD
98-8M0078884
Engine Assembly Kit includes Fuel Module, Literature Kit, Vessel Adapter
Assembly, Vessel Sensor Harness, Drive Application Harness and Gear Actuation
Harness. Must be used with the correct engine during installation
Mercury Diesel TDI 4.2L 335 HP DTS Inboard 8M0099153
Kit to simplify ordering engine rigging components specific to a TDI Axius
TDI 4.2L 370 HP ENGINE ASSEMBLY KIT - DTS application ‑ contains a 3 meter engine to VAA harness, 20 foot engine unswitched
INBOARD power harness, 10 foot vessel sensor extension harness, fuel level harness, 10
98-8M0078883 foot trim pump/sender extension harness, a 3 foot diagnostic yellow CAN cable,
Engine Assembly Kit includes Fuel Module, Literature Kit, Vessel Adapter TVM to VAA cable, 40 foot helm clean power harness, key switch kit and two Axius
Assembly, Vessel Sensor Harness, Drive Application Harness and Gear Actuation adapter harnesses. Does not include helm rigging (control, harnessing, gauges,
etc).
Harness. Must be used with the correct engine during installation
Mercury Diesel TDI 4.2L 370 HP DTS Inboard Use only on Mercury Diesel TDI Axius applications
MERCURY DIESEL TDI INBOARD HARNESS KIT
PANELS NON DTS
TDI 4.2L 335 HP ENGINE ASSEMBLY KIT - MECH
STERNDRIVE

98-8M0078876
Engine Assembly Kit includes ‑ Drive Lube Monitor, MerCathode, Shift Actuator,
Exhaust Bullhorn, Literature Kit, Vessel Adapter Assembly and Vessel Sensor
Harness.
Must be used with the correct engine during installation
Mercury Diesel TDI 4.2L 335 HP Mechanical Sterndrive
MERCURY DIESEL MECHANICAL HELM HARNESS 8M0099154
Kit to simplify ordering engine rigging components specific to a TDI Inboard
application ‑ contains a 3 meter engine to VAA harness, 20 foot engine unswitched
power harness, 10 foot vessel sensor extension harness, fuel level harness, 10
foot drive application extension harness, a diagnostic port and a 3 foot diagnostic
yellow CAN cable. Does not include helm rigging (control, harnessing, gauges,
etc).
Can be used on all Mercury Diesel TDI inboard packages.
SIMS MODULE

84-8M0084296
Non DTS Helm Harness
Mercury Diesel: Mechanical versions of TDI 3.0L and 4.2L, Tier 2 and Tier 3 (use
one per engine at the helm), does not support SmartCraft depth or steering
sensors

DIESEL TDI RIGGING
77-8M0086461
MERCURY DIESEL TDI STERNDRIVE HARNESS KIT Sim module(Service) with unique software for the engine
100 DTS Sterndrive TDI ‑ V6
8M0099152 77-8M0086455
Kit to simplify ordering engine rigging components specific to a TDI Sterndrive Sim module(Service) with unique software for the engine
application ‑ contains a 3 meter engine to VAA harness, 20 foot engine unswitched 260 DTS Sterndrive TDI ‑ V6
power harness, 10 foot vessel sensor extension harness, fuel level harness, 10 77-8M0086462
foot trim pump/sender extension harness, a diagnostic port and a 3 foot diagnostic
yellow CAN cable. Does not include helm rigging (control, harnessing, gauges, Sim module(Service) with unique software for the engine
etc). 100 Mech Sterndrive TDI ‑ V6
Can be used on all Mercury Diesel TDI sterndrive packages. 77-8M0086456
Sim module(Service) with unique software for the engine
230 DTS Sterndrive TDI ‑ V6 DIESEL RIGGING
77-8M0086459
Sim module(Service) with unique software for the engine
230 Mech Sterndrive TDI ‑ V6

2020 Mercury Precision Parts & Accessories Guide 579
