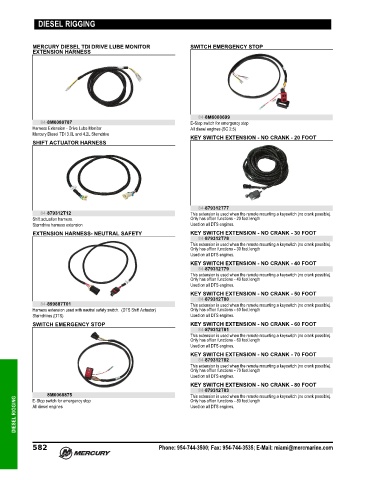

DIESEL RIGGING
MERCURY DIESEL TDI DRIVE LUBE MONITOR SWITCH EMERGENCY STOP
EXTENSION HARNESS
84-8M6000699
84-8M0080787 E‑Stop switch for emergency stop
Harness Extension ‑ Drive Lube Monitor All diesel engines (SC 2.5)
Mercury Diesel TDI 3.0L and 4.2L Sterndrive
KEY SWITCH EXTENSION - NO CRANK - 20 FOOT
SHIFT ACTUATOR HARNESS
84-879312T77
84-879312T12 This extension is used when the remote mounting a keyswitch (no crank possible).
Shift actuation harness. Only has off/on functions ‑ 20 foot length
Sterndrive harness extension Used on all DTS engines.
EXTENSION HARNESS- NEUTRAL SAFETY KEY SWITCH EXTENSION - NO CRANK - 30 FOOT
84-879312T78
This extension is used when the remote mounting a keyswitch (no crank possible).
Only has off/on functions ‑ 30 foot length
Used on all DTS engines.
KEY SWITCH EXTENSION - NO CRANK - 40 FOOT
84-879312T79
This extension is used when the remote mounting a keyswitch (no crank possible).
Only has off/on functions ‑ 40 foot length
Used on all DTS engines.
KEY SWITCH EXTENSION - NO CRANK - 50 FOOT
84-879312T80
84-899887T01 This extension is used when the remote mounting a keyswitch (no crank possible).
Harness extension used with neutral safety switch. (DTS Shift Actuator) Only has off/on functions ‑ 50 foot length
Sterndrives (DTS) Used on all DTS engines.
SWITCH EMERGENCY STOP KEY SWITCH EXTENSION - NO CRANK - 60 FOOT
84-879312T81
This extension is used when the remote mounting a keyswitch (no crank possible).
Only has off/on functions ‑ 60 foot length
Used on all DTS engines.
KEY SWITCH EXTENSION - NO CRANK - 70 FOOT
84-879312T82
This extension is used when the remote mounting a keyswitch (no crank possible).
Only has off/on functions ‑ 70 foot length
Used on all DTS engines.
KEY SWITCH EXTENSION - NO CRANK - 80 FOOT
84-879312T83
8M0068875 This extension is used when the remote mounting a keyswitch (no crank possible).
DIESEL RIGGING All diesel engines Used on all DTS engines.
Only has off/on functions ‑ 80 foot length
E‑Stop switch for emergency stop
