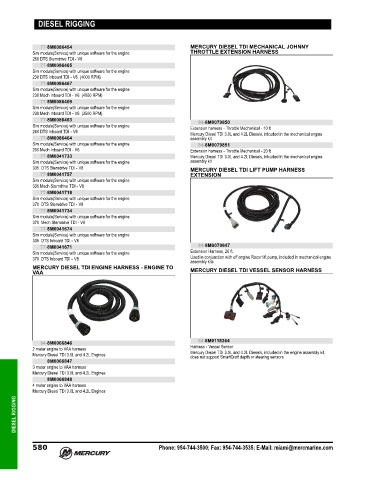

Page 589 - Latin America Accessories Guide (2020) - 8M0163252

DIESEL RIGGING

77-8M0086454 MERCURY DIESEL TDI MECHANICAL JOHNNY
Sim module(Service) with unique software for the engine THROTTLE EXTENSION HARNESS
260 DTS Sterndrive TDI ‑ V6
77-8M0086465
Sim module(Service) with unique software for the engine
230 DTS Inboard TDI ‑ V6 (4000 RPM)
77-8M0086467
Sim module(Service) with unique software for the engine
230 Mech Inboard TDI ‑ V6 (4000 RPM)
77-8M0086469
Sim module(Service) with unique software for the engine
230 Mech Inboard TDI ‑ V6 (3500 RPM)
77-8M0086463 84-8M0079850
Sim module(Service) with unique software for the engine Extension harness ‑ Throttle Mechanical ‑ 10 ft
260 DTS Inboard TDI ‑ V6 Mercury Diesel TDI 3.0L and 4.2L Diesels, inlcuded in the mechanical engine
77-8M0086464 assembly kit
Sim module(Service) with unique software for the engine 84-8M0079851
260 Mech Inboard TDI ‑ V6 Extension harness ‑ Throttle Mechanical ‑ 20 ft
77-8M0041733 Mercury Diesel TDI 3.0L and 4.2L Diesels, inlcuded in the mechanical engine
Sim module(Service) with unique software for the engine assembly kit
335 DTS Sterndrive TDI ‑ V8 MERCURY DIESEL TDI LIFT PUMP HARNESS
77-8M0041757 EXTENSION
Sim module(Service) with unique software for the engine
335 Mech Sterndrive TDI ‑ V8
77-8M0041718
Sim module(Service) with unique software for the engine
370 DTS Sterndrive TDI ‑ V8
77-8M0041734
Sim module(Service) with unique software for the engine
370 Mech Sterndrive TDI ‑ V8
77-8M0041674
Sim module(Service) with unique software for the engine
335 DTS Inboard TDI ‑ V8
77-8M0041671 84-8M0079847
Sim module(Service) with unique software for the engine Extension Harness, 20 ft.
370 DTS Inboard TDI ‑ V8 Used in conjunction with off engine Racor lift pump, included in mechanical engine
assembly kits
MERCURY DIESEL TDI ENGINE HARNESS - ENGINE TO
VAA MERCURY DIESEL TDI VESSEL SENSOR HARNESS

84-8M0118364
84-8M0066846
2 meter engine to VAA harness Harness ‑ Vessel Sensor
Mercury Diesel TDI 3.0L and 4.2L Engines Mercury Diesel TDI 3.0L and 4.2L Diesels, included in the engine assembly kit,
does not support SmartCraft depth or steering sensors
8M0066847
3 meter engine to VAA harness
Mercury Diesel TDI 3.0L and 4.2L Engines
8M0066848
4 meter engine to VAA harness
Mercury Diesel TDI 3.0L and 4.2L Engines
DIESEL RIGGING

580 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
