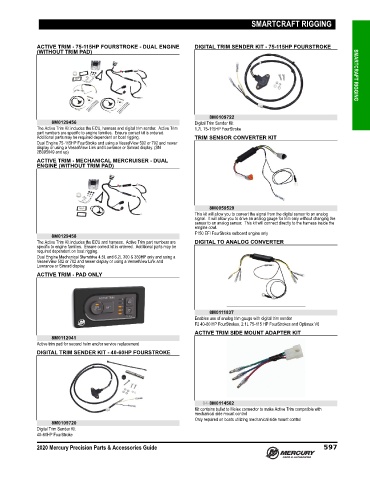

SMARTCRAFT RIGGING

ACTIVE TRIM - 75-115HP FOURSTROKE - DUAL ENGINE DIGITAL TRIM SENDER KIT - 75-115HP FOURSTROKE
(WITHOUT TRIM PAD) SMARTCRAFT RIGGING

8M0109722
8M0129456 Digital Trim Sender Kit
The Active Trim Kit includes the ECU, harness and digital trim sender. Active Trim 1.7L 75‑115HP FourStroke
part numbers are specific to engine families. Ensure correct kit is ordered.
Additional parts may be required dependent on boat rigging. TRIM SENSOR CONVERTER KIT
Dual Engine 75‑115HP FourStroke and using a VesselView 502 or 702 and newer
display or using a VesselView Link and Lowrance or Simrad display. (SN
2B095049 and up)
ACTIVE TRIM - MECHANICAL MERCRUISER - DUAL
ENGINE (WITHOUT TRIM PAD)

8M0059529
This kit will allow you to convert the signal from the digital sensor to an analog
signal. It will allow you to drive an analog gauge for trim only without changing the
sensor to an analog sensor. This kit will connect directly to the harness inside the
emgine cowl.
F150 EFI FourStroke outboard engine only
8M0129458
The Active Trim Kit includes the ECU and harness. Active Trim part numbers are DIGITAL TO ANALOG CONVERTER
specific to engine families. Ensure correct kit is ordered. Additional parts may be
required dependent on boat rigging.
Dual Engine Mechanical Sterndrive 4.5L and 6.2L 300 & 350HP only and using a
VesselView 502 or 702 and newer display or using a VesselView Link and
Lowrance or Simrad display.
ACTIVE TRIM - PAD ONLY

8M0111837
Enables use of analog trim gauge with digital trim sender
F2 40‑60 HP FourStrokes, 2.1L 75‑115 HP FourStrokes and Optimax V6
ACTIVE TRIM SIDE MOUNT ADAPTER KIT
8M0112041
Active trim pad for second helm and/or service replacement
DIGITAL TRIM SENDER KIT - 40-60HP FOURSTROKE

84-8M0114502
Kit contains bullet to Molex connector to make Active Trim compatible with
mechanical side mount control
Only required on boats utilizing mechanical side mount control
8M0109720
Digital Trim Sender Kit
40‑60HP FourStroke
