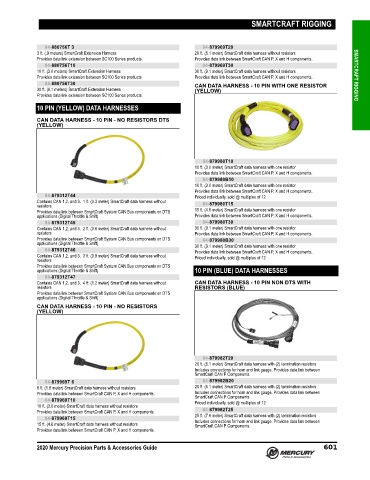

Page 610 - Latin America Accessories Guide (2020) - 8M0163252

SMARTCRAFT RIGGING

84-880756T 3 84-879969T20
3 ft. (.9 meters) SmartCraft Extension Harness 20 ft. (6.1 meter) SmartCraft data harness without resistors
Provides data link extension between SC100 Series products. Provides data link between SmartCraft CAN P, X and H components.
84-880756T10 84-879969T30
10 ft. (3.0 meters) SmartCraft Extension Harness 30 ft. (9.1 meter) SmartCraft data harness without resistors
Provides data link extension between SC100 Series products. Provides data link between SmartCraft CAN P, X and H components. SMARTCRAFT RIGGING
84-880756T30 CAN DATA HARNESS - 10 PIN WITH ONE RESISTOR
30 ft. (9.1 meters) SmartCraft Extension Harness (YELLOW)
Provides data link extension between SC100 Series products.
10 PIN (YELLOW) DATA HARNESSES

CAN DATA HARNESS - 10 PIN - NO RESISTORS DTS
(YELLOW)

84-879980T10
10 ft. (3.0 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft CAN P, X and H components.
84-879980B10
10 ft. (3.0 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft CAN P, X and H components.
84-879312T44 Priced individually, sold @ multiples of 12
Contains CAN 1,2, and 3. 1 ft. (0.3 meter) SmartCraft data harness without
resistors 84-879980T15
Provides data link between SmartCraft System CAN Bus components on DTS 15 ft. (4.6 meter) SmartCraft data harness with one resistor
applications (Digital Throttle & Shift) Provides data link between SmartCraft CAN P, X and H components.
84-879312T45 84-879980T30
Contains CAN 1,2, and 3. 2 ft. (0.6 meter) SmartCraft data harness without 30 ft. (9.1 meter) SmartCraft data harness with one resistor
resistors Provides data link between SmartCraft CAN P, X and H components.
Provides data link between SmartCraft System CAN Bus components on DTS 84-879980B30
applications (Digital Throttle & Shift) 30 ft. (9.1 meter) SmartCraft data harness with one resistor
84-879312T46 Provides data link between SmartCraft CAN P, X and H components.
Contains CAN 1,2, and 3. 3 ft. (0.9 meter) SmartCraft data harness without Priced individually, sold @ multiples of 12
resistors
Provides data link between SmartCraft System CAN Bus components on DTS
applications (Digital Throttle & Shift) 10 PIN (BLUE) DATA HARNESSES
84-879312T47
Contains CAN 1,2, and 3. 4 ft. (1.2 meter) SmartCraft data harness without CAN DATA HARNESS - 10 PIN NON DTS WITH
resistors RESISTORS (BLUE)
Provides data link between SmartCraft System CAN Bus components on DTS
applications (Digital Throttle & Shift)
CAN DATA HARNESS - 10 PIN - NO RESISTORS
(YELLOW)

84-879982T20
20 ft. (6.1 meter) SmartCraft data harness with (2) termination resistors
Includes connections for horn and link gauge. Provides data link between
SmartCraft CAN P Components.
84-879969T 6 84-879982B20
6 ft. (1.8 meter) SmartCraft data harness without resistors 20 ft. (6.1 meter) SmartCraft data harness with (2) termination resistors
Provides data link between SmartCraft CAN P, X and H components. Includes connections for horn and link gauge. Provides data link between
SmartCraft CAN P Components.
84-879969T10 Priced individually, sold @ multiples of 12
10 ft. (3.0 meter) SmartCraft data harness without resistors
Provides data link between SmartCraft CAN P, X and H components. 84-879982T25
84-879969T15 25 ft. (7.6 meter) SmartCraft data harness with (2) termination resistors
15 ft. (4.6 meter) SmartCraft data harness without resistors Includes connections for horn and link gauge. Provides data link between
SmartCraft CAN P Components.
Provides data link between SmartCraft CAN P, X and H components.
