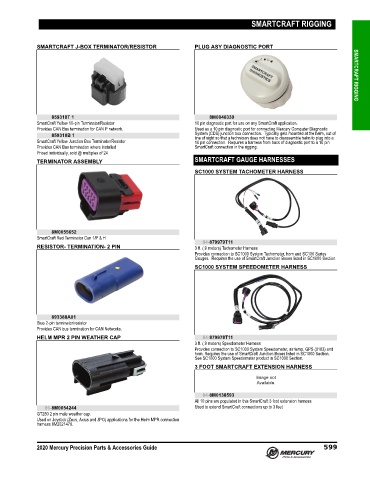

P. 608
SMARTCRAFT RIGGING
SMARTCRAFT J-BOX TERMINATOR/RESISTOR PLUG ASY DIAGNOSTIC PORT SMARTCRAFT RIGGING
859318T 1 8M0046339
SmartCraft Yellow 10‑pin Terminator/Resistor 10 pin diagnostic port for use on any SmartCraft application.
Provides CAN Bus termination for CAN P network. Used as a 10 pin diagnostic port for connecting Mercury Computer Diagnostic
859318B 1 System (CDS) junction box connection. Typically gets mounted at the helm, out of
line of sight so that a technician does not have to disassemble helm to plug into a
SmartCraft Yellow Junction Box Terminator/Resistor 10 pin connection. Requires a harness from back of diagnostic port to a 10 pin
Provides CAN Bus termination where installed SmartCraft connection in the rigging.
Priced individually, sold @ multiples of 24
TERMINATOR ASSEMBLY SMARTCRAFT GAUGE HARNESSES
SC1000 SYSTEM TACHOMETER HARNESS
8M0055652
SmartCraft Red Terminator Can 1/P & H
84-879979T11
RESISTOR- TERMINATION- 2 PIN 3 ft. (.9 meters) Tachometer Harness
Provides connection to SC1000 System Tachometer, horn and SC100 Series
Gauges. Requires the use of SmartCraft Junction Boxes listed in SC1000 Section.
SC1000 SYSTEM SPEEDOMETER HARNESS
893388A01
Blue 2‑pin terminator/resistor
Provides CAN bus termination for CAN Networks.
HELM MPR 2 PIN WEATHER CAP 84-879978T11
3 ft. (.9 meters) Speedometer Harness
Provides connection to SC1000 System Speedometer, air temp, GPS (0183) and
horn. Requires the use of SmartCraft Junction Boxes listed in SC1000 Section.
See SC1000 System Speedometer product in SC1000 Section.
3 FOOT SMARTCRAFT EXTENSION HARNESS
84-8M0138593
All 10 pins are populated in this SmartCraft 3 foot extension harness
86-8M0054244 Used to extend SmartCraft connections up to 3 feet
GT280 2 pin male weather cap.
Used on Joystick (Zeus, Axius and JPO) applications for the Helm MPR connection
harness 8M2021476.
2020 Mercury Precision Parts & Accessories Guide 599
