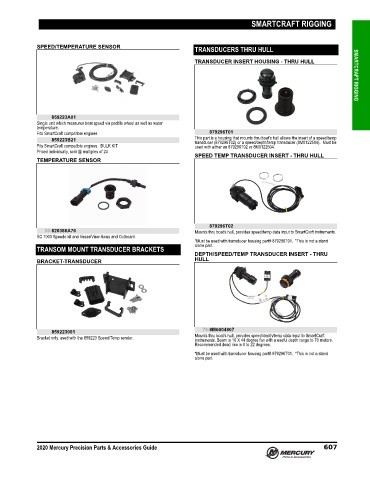

Page 616 - Latin America Accessories Guide (2020) - 8M0163252

SMARTCRAFT RIGGING

SPEED/TEMPERATURE SENSOR
TRANSDUCERS THRU HULL
TRANSDUCER INSERT HOUSING - THRU HULL SMARTCRAFT RIGGING

859223A01
Single unit which measures boat speed via paddle wheel as well as water
temperature.
Fits SmartCraft compatible engines. 879296T01
859223B21 This part is a housing that mounts thru boat's hull allows the insert of a speed/temp
transducer (879296T02) or a speed/depth/temp transducer (8M0122504). Must be
Fits SmartCraft compatible engines. BULK KIT used with either an 879296T02 or 8M0122504.
Priced individually, sold @ multiples of 24
SPEED TEMP TRANSDUCER INSERT - THRU HULL
TEMPERATURE SENSOR

879296T02
56-820386A76 Mounts thru boat's hull, provides speed/temp data input to SmartCraft instruments.
SC 1000 Speedo kit and VesselView Axius and Outboard.
*Must be used with transducer housing part# 879296T01. *This is not a stand
TRANSOM MOUNT TRANSDUCER BRACKETS alone part.
DEPTH/SPEED/TEMP TRANSDUCER INSERT - THRU
BRACKET-TRANSDUCER HULL

79-8M6004807
859223001
Bracket only, used with the 859223 Speed/Temp sender. Mounts thru boat's hull, provides speed/depth/temp data input to SmartCraft
instruments. Beam is 10 X 44 degree fan with a useful depth range to 70 meters.
Recommended dead rise is 0 to 22 degrees.
*Must be used with transducer housing part# 879296T01. *This is not a stand
alone part.
