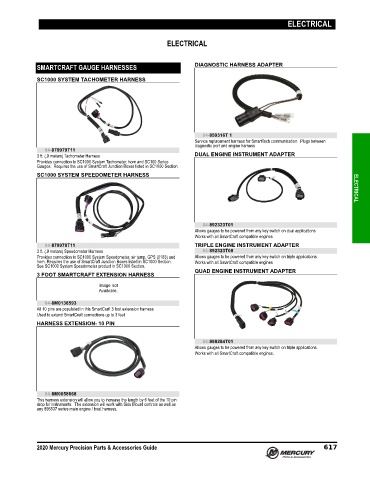

Page 626 - Latin America Accessories Guide (2020) - 8M0163252

ELECTRICAL

ELECTRICAL

SMARTCRAFT GAUGE HARNESSES DIAGNOSTIC HARNESS ADAPTER

SC1000 SYSTEM TACHOMETER HARNESS

84-859316T 1
Service replacement harness for SmartTach communication. Plugs between
diagnostic port and engine harness
84-879979T11
3 ft. (.9 meters) Tachometer Harness DUAL ENGINE INSTRUMENT ADAPTER
Provides connection to SC1000 System Tachometer, horn and SC100 Series
Gauges. Requires the use of SmartCraft Junction Boxes listed in SC1000 Section.
SC1000 SYSTEM SPEEDOMETER HARNESS ELECTRICAL

84-892323T01
Allows gauges to be powered from any key switch on dual applications
Works with all SmartCraft compatible engines
84-879978T11 TRIPLE ENGINE INSTRUMENT ADAPTER
3 ft. (.9 meters) Speedometer Harness 84-892323T08
Provides connection to SC1000 System Speedometer, air temp, GPS (0183) and Allows gauges to be powered from any key switch on triple applications.
horn. Requires the use of SmartCraft Junction Boxes listed in SC1000 Section. Works with all SmartCraft compatible engines
See SC1000 System Speedometer product in SC1000 Section.
QUAD ENGINE INSTRUMENT ADAPTER
3 FOOT SMARTCRAFT EXTENSION HARNESS

84-8M0138593
All 10 pins are populated in this SmartCraft 3 foot extension harness
Used to extend SmartCraft connections up to 3 feet
HARNESS EXTENSION- 10 PIN

84-898284T01
Allows gauges to be powered from any key switch on triple applications.
Works with all SmartCraft compatible engines.

84-8M0058668
This harness extension will allow you to increase the length by 6 feet of the 10 pin
drop for instruments. The extension will work with Side Mount controls as well as
any 896537 series main engine / boat harness.

2020 Mercury Precision Parts & Accessories Guide 617
