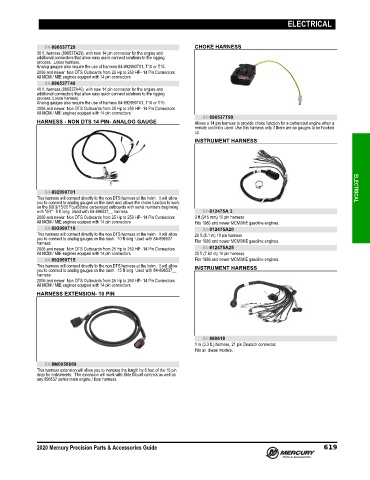

Page 628 - Latin America Accessories Guide (2020) - 8M0163252

ELECTRICAL

84-896537T29 CHOKE HARNESS
30 ft. harness (896537A29) with new 14 pin connector for the engine and
additional connectors that allow easy quick connect solutions to the rigging
process. Loose harness.
Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors
84-896537T40
40 ft. harness (896537A40) with new 14 pin connector for the engine and
additional connectors that allow easy quick connect solutions to the rigging
process. Loose harness.
Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors
84-896537T99
HARNESS - NON DTS 14 PIN- ANALOG GAUGE Allows a 14 pin harness to provide choke function for a carbureted engine when a
remote control is used. Use this harness only if there are no gauges to be hooked
up.
INSTRUMENT HARNESS

84-892990T01 ELECTRICAL
This harness will connect directly to the non DTS harness at the helm. It will allow
you to connect to analog gauges on the dash and allows the choke function to work
on the 8/9.9/15/20 FourStroke carbureted outboards with serial numbers beginning
with "0R". 5 ft long Used with 84‑896537__ harness 84-812475A 3
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors 3 ft.(915 mm) 10 pin harness
All MCM / MIE engines equiped with 14 pin connectors Fits 1986 and newer MCM/MIE gasoline engines.
84-892990T10 84-812475A20
This harness will connect directly to the non DTS harness at the helm. It will allow 20 ft.(6.1 m) 10 pin harness
you to connect to analog gauges on the dash. 10 ft long Used with 84‑896537__ Fits 1986 and newer MCM/MIE gasoline engines.
harness
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors 84-812475A25
All MCM / MIE engines equiped with 14 pin connectors 25 ft.(7.62 m) 10 pin harness
84-892990T15 Fits 1986 and newer MCM/MIE gasoline engines.
This harness will connect directly to the non DTS harness at the helm. It will allow INSTRUMENT HARNESS
you to connect to analog gauges on the dash. 15 ft long Used with 84‑896537__
harness
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors
HARNESS EXTENSION- 10 PIN

84-860618
1 m (3.3 ft.) harness, 21 pin Deutsch connector.
Fits all diesel models.
84-8M0058668
This harness extension will allow you to increase the length by 6 feet of the 10 pin
drop for instruments. The extension will work with Side Mount controls as well as
any 896537 series main engine / boat harness.

2020 Mercury Precision Parts & Accessories Guide 619
