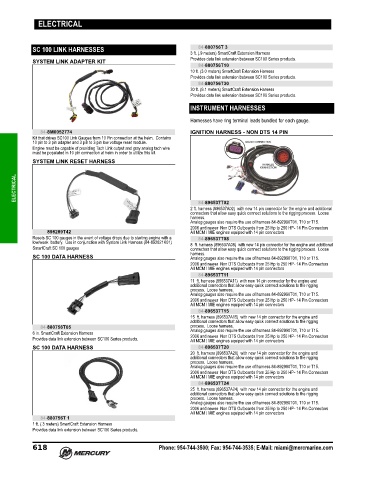

Page 627 - Latin America Accessories Guide (2020) - 8M0163252

ELECTRICAL

SC 100 LINK HARNESSES 84-880756T 3
3 ft. (.9 meters) SmartCraft Extension Harness
Provides data link extension between SC100 Series products.
SYSTEM LINK ADAPTER KIT
84-880756T10
10 ft. (3.0 meters) SmartCraft Extension Harness
Provides data link extension between SC100 Series products.
84-880756T30
30 ft. (9.1 meters) SmartCraft Extension Harness
Provides data link extension between SC100 Series products.
INSTRUMENT HARNESSES

Harnesses have ring terminal leads bundled for each gauge.

84-8M0052774 IGNITION HARNESS - NON DTS 14 PIN
Kit that drives SC100 Link Gauges from 10 Pin connection at the helm. Contains
10 pin to 3 pin adapter and 3 pin to 3 pin low voltage reset module.
Engine must be capable of providing Tach Link output and gray analog tach wire
must be populated in 10 pin connection at helm in order to utilize this kit.
SYSTEM LINK RESET HARNESS

ELECTRICAL

84-896537T02
2 ft. harness (896537A02) with new 14 pin connector for the engine and additional
connectors that allow easy quick connect solutions to the rigging process. Loose
harness.
Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
898289T42 All MCM / MIE engines equiped with 14 pin connectors
Resets SC 100 gauges in the event of voltage drops due to starting engine with a 84-896537T08
low/weak battery. Use in conjunction with System Link Harness (84‑892821K01) 8 ft. harness (896537A08) with new 14 pin connector for the engine and additional
SmartCraft SC 100 gauges connectors that allow easy quick connect solutions to the rigging process. Loose
harness.
SC 100 DATA HARNESS Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors
84-896537T11
11 ft. harness (896537A11) with new 14 pin connector for the engine and
additional connectors that allow easy quick connect solutions to the rigging
process. Loose harness.
Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors
84-896537T15
15 ft. harness (896537A15) with new 14 pin connector for the engine and
additional connectors that allow easy quick connect solutions to the rigging
84-880756T05 process. Loose harness.
6 in. SmartCraft Extension Harness Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
Provides data link extension between SC100 Series products. All MCM / MIE engines equiped with 14 pin connectors
SC 100 DATA HARNESS 84-896537T20
20 ft. harness (896537A20) with new 14 pin connector for the engine and
additional connectors that allow easy quick connect solutions to the rigging
process. Loose harness.
Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors
84-896537T24
25 ft. harness (896537A24) with new 14 pin connector for the engine and
additional connectors that allow easy quick connect solutions to the rigging
process. Loose harness.
Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors
84-880756T 1
1 ft. (.3 meters) SmartCraft Extension Harness
Provides data link extension between SC100 Series products.
