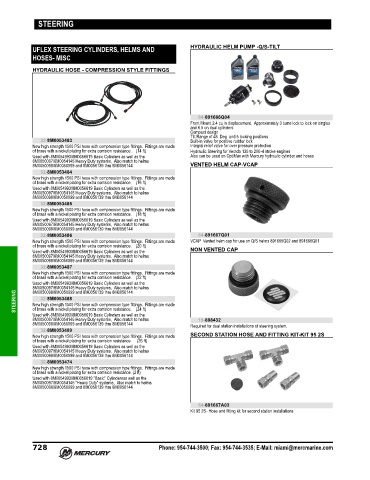

Page 737 - Latin America Accessories Guide (2020) - 8M0163252

STEERING

UFLEX STEERING CYLINDERS, HELMS AND HYDRAULIC HELM PUMP -Q/S-TILT
HOSES- MISC

HYDRAULIC HOSE - COMPRESSION STYLE FITTINGS

64-891666Q04
Front Mount 2.4 cu in displacement. Approximately 3 turns lock to lock on singles
and 6.5 on dual cylinders
Compact design
Tilt Range of 48 Deg and 5 locking positions
32-8M0053483 Built‑in valve for positive rudder lock
New high strength 1500 PSI hose with compression type fittings. Fittings are made Integral relief valve for over pressure protection
of brass with a nickel plating for extra corrision resistance. (14 ft) Hydraulic Steering for Verado 135 to 200‑4 stroke engines
Used with 8M0054993/8M0056619 Basic Cylinders as well as the Also can be used on OptiMax with Mercury hydraulic cylinder and hoses
8M0050097/8M0054145 Heavy Duty systems, Also match to helms
8M0050098/8M0050099 and 8M0056139 thru 8M0056144 VENTED HELM CAP-VCAP
32-8M0053484
New high strength 1500 PSI hose with compression type fittings. Fittings are made
of brass with a nickel plating for extra corrision resistance. (16 ft)
Used with 8M0054993/8M0056619 Basic Cylinders as well as the
8M0050097/8M0054145 Heavy Duty systems, Also match to helms
8M0050098/8M0050099 and 8M0056139 thru 8M0056144
32-8M0053485
New high strength 1500 PSI hose with compression type fittings. Fittings are made
of brass with a nickel plating for extra corrision resistance. (18 ft)
Used with 8M0054993/8M0056619 Basic Cylinders as well as the
8M0050097/8M0054145 Heavy Duty systems, Also match to helms
8M0050098/8M0050099 and 8M0056139 thru 8M0056144
32-8M0053486 64-891667Q01
New high strength 1500 PSI hose with compression type fittings. Fittings are made VCAP Vented helm cap for use on Q/S helms 891665Q02 and 891666Q01
of brass with a nickel plating for extra corrision resistance. (20 ft)
Used with 8M0054993/8M0056619 Basic Cylinders as well as the NON VENTED CAP
8M0050097/8M0054145 Heavy Duty systems, Also match to helms
8M0050098/8M0050099 and 8M0056139 thru 8M0056144
32-8M0053487
New high strength 1500 PSI hose with compression type fittings. Fittings are made
of brass with a nickel plating for extra corrision resistance. (22 ft)
Used with 8M0054993/8M0056619 Basic Cylinders as well as the
8M0050097/8M0054145 Heavy Duty systems, Also match to helms
8M0050098/8M0050099 and 8M0056139 thru 8M0056144
STEERING New high strength 1500 PSI hose with compression type fittings. Fittings are made
32-8M0053488
of brass with a nickel plating for extra corrision resistance. (24 ft)
Used with 8M0054993/8M0056619 Basic Cylinders as well as the
8M0050097/8M0054145 Heavy Duty systems, Also match to helms 19-898432
8M0050098/8M0050099 and 8M0056139 thru 8M0056144 Required for dual station installations of steering system.
32-8M0053489
New high strength 1500 PSI hose with compression type fittings. Fittings are made SECOND STATION HOSE AND FITTING KIT-KIT 95 2S
of brass with a nickel plating for extra corrision resistance. (26 ft)
Used with 8M0054993/8M0056619 Basic Cylinders as well as the
8M0050097/8M0054145 Heavy Duty systems, Also match to helms
8M0050098/8M0050099 and 8M0056139 thru 8M0056144
32-8M0053474
New high strength 1500 PSI hose with compression type fittings. Fittings are made
of brass with a nickel plating for extra corrision resistance. (2 ft)
Used with 8M0054993/8M0056619 "Basic" Cylindersas well as the
8M0050097/8M0054145 "Heavy Duty" systems, Also match to helms
8M0050098/8M0050099 and 8M0056139 thru 8M0056144

64-891667A03
Kit 95 2S‑ Hose and fitting kit for second station installations
