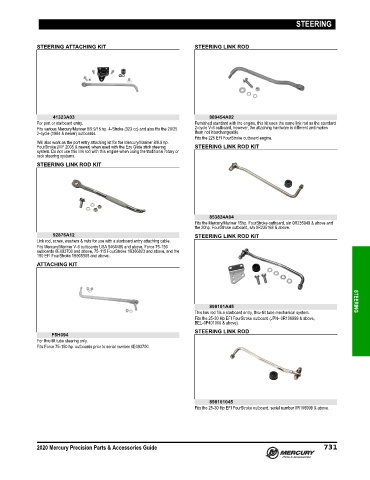

Page 740 - Latin America Accessories Guide (2020) - 8M0163252

STEERING

STEERING ATTACHING KIT STEERING LINK ROD

41323A03 889454A02
For port or starboard entry. Furnished standard with the engine, this kit uses the same link rod as the standard
Fits various Mercury/Mariner 8/9.9/15 hp. 4‑Stroke (323 cc) and also fits the 20/25 2‑cycle V‑6 outboard, however, the attaching hardware is different and makes
2‑cycle (1984 & newer) outboards. them not interchangeable.
Fits the 225 EFI FourStroke outboard engine.
Will also work as the port entry attaching kit for the Mercury/Mariner 8/9.9 hp.
FourStroke (MY 2005 & newer) when used with the Ezy Glide stick steering STEERING LINK ROD KIT
system. Do not use this link rod with this engine when using the traditional rotary or
rack steering systems.
STEERING LINK ROD KIT

853824A04
Fits the Mercury/Mariner 15hp. FourStroke outboard, s/n 0R235949 & above and
the 20hp. FourStroke outboard, s/n 0R235168 & above.
92876A12 STEERING LINK ROD KIT
Link rod, screw, washers & nuts for use with a starboard entry attaching cable.
Fits Mercury/Mariner V‑6 outboards USA 5464486 and above, Force 75‑150
outboards 0E093700 and above, 75‑115 FourStroke 1B366823 and above, and the
150 EFI FourStroke 1B905505 and above..
ATTACHING KIT

898101A45 STEERING
This link rod fits a starboard entry, thru‑tilt tube mechanical system.
Fits the 25‑30 Hp EFI FourStroke outboard (JPN‑ 0R106999 & above,
BEL‑0P401000 & above).
STEERING LINK ROD
F5H094
For thru tilt tube steering only.
Fits Force 75‑150 hp. outboards prior to serial number 0E093700.

898101045
Fits the 25‑30 Hp EFI FourStroke outboard, serial number 0R106999 & above.

2020 Mercury Precision Parts & Accessories Guide 731
