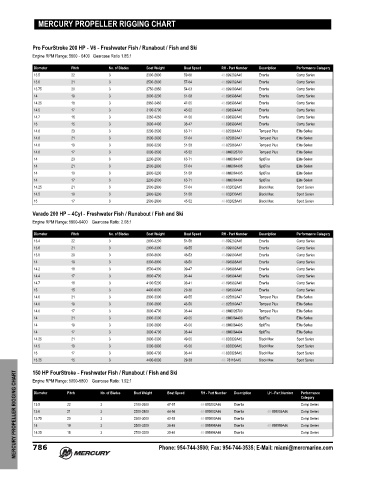

Page 795 - Latin America Accessories Guide (2020) - 8M0163252

MERCURY PROPELLER RIGGING CHART

Pro FourStroke 200 HP ‑ V6 ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5800 ‑ 6400 Gearcase Ratio 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
13.5 22 3 2300-2600 59-68 48-899202A46 Enertia Comp Series
13.6 21 3 2500-2800 57-64 48-899002A46 Enertia Comp Series
13.75 20 3 2750-2950 54-63 48-899000A46 Enertia Comp Series
14 19 3 2800-3200 51-58 48-898998A46 Enertia Comp Series
14.25 18 3 2950-3450 47-55 48-898996A46 Enertia Comp Series
14.5 17 3 3100-3700 45-52 48-898994A46 Enertia Comp Series
14.7 16 3 3350-4250 41-50 48-898992A46 Enertia Comp Series
15 15 3 3600-4400 38-47 48-898990A46 Enertia Comp Series
14.6 23 3 2200-2500 63-71 48-825864A47 Tempest Plus Elite Series
14.6 21 3 2500-2800 57-64 48-825862A47 Tempest Plus Elite Series
14.6 19 3 2800-3200 51-58 48-825860A47 Tempest Plus Elite Series
14.6 17 3 3000-3500 45-52 48-8M8026790 Tempest Plus Elite Series
14 23 3 2200-2500 63-71 48-8M0084497 SpitFire Elite Series
14 21 3 2500-2800 57-64 48-8M0084496 SpitFire Elite Series
14 19 3 2800-3200 51-58 48-8M0084495 SpitFire Elite Series
14 17 3 2200-2500 63-71 48-8M0084494 SpitFire Elite Series
14.25 21 3 2500-2800 57-64 48-832832A45 Black Max Sport Series
14.5 19 3 2800-3200 51-58 48-832830A45 Black Max Sport Series
15 17 3 2500-2800 45-52 48-832828A45 Black Max Sport Series
Verado 200 HP – 4Cyl ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5800‑6400 Gearcase Ratio: 2.08:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
13.4 22 3 2800-3200 51-58 48-899202A46 Enertia Comp Series
13.6 21 3 2900-3300 49-55 48-899002A46 Enertia Comp Series
13.8 20 3 3000-3600 46-53 48-899000A46 Enertia Comp Series
14 19 3 3300-3900 43-50 48-898998A46 Enertia Comp Series
14.2 18 3 3500-4300 39-47 48-898996A46 Enertia Comp Series
14.4 17 3 3800-4700 36-44 48-898994A46 Enertia Comp Series
14.7 16 3 4100-5200 33-41 48-898992A46 Enertia Comp Series
15 15 3 4400-6000 29-38 48-898990A46 Enertia Comp Series
14.6 21 3 2900-3300 49-55 48-825862A47 Tempest Plus Elite Series
14.6 19 3 3300-3900 43-50 48-825860A47 Tempest Plus Elite Series
14.6 17 3 3800-4700 36-44 48-8M8026790 Tempest Plus Elite Series
14 21 3 2900-3300 49-55 48-8M0084496 SpitFire Elite Series
14 19 3 3300-3900 43-50 48-8M0084495 SpitFire Elite Series
14 17 3 3800-4700 36-44 48-8M0084494 SpitFire Elite Series
14.25 21 3 2900-3300 49-55 48-832832A45 Black Max Sport Series
14.5 19 3 3300-3900 43-50 48-832830A45 Black Max Sport Series
15 17 3 3800-4700 36-44 48-832828A45 Black Max Sport Series
15.25 15 3 4400-6000 29-38 48- 78116A45 Black Max Sport Series
150 HP FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
MERCURY PROPELLER RIGGING CHART 786 Pitch No. of Blades Boat Weight Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
Engine RPM Range: 5000‑5800 Gearcase Ratio: 1.92:1

LH - Part Number
Performance
Boat Speed
Diameter
RH - Part Number
Description
Category
47-57
Enertia
2100-2600

3
22
48-899202A46
13.5
Comp Series
48-899002A46
13.6
44-54
Enertia
48-899003A46
3
21
Comp Series
2200-2800

Enertia
48-899000A46
Comp Series
42-52
2300-3000
3
20
13.75
Comp Series
3
14
19
48-898999A46
39-49
2500-3200
48-898998A46
Enertia
14.25
Comp Series
35-46
48-898996A46
Enertia
3
18
2700-3200
