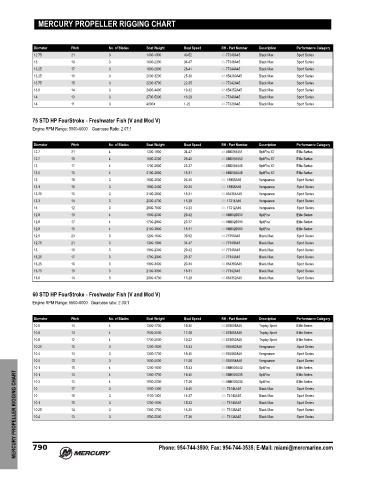

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.75 21 3 1400-1900 40-52 48-77348A45 Black Max Sport Series
13 19 3 1600-2300 34-47 48-77346A45 Black Max Sport Series
13.25 17 3 1800-2800 28-41 48-77344A45 Black Max Sport Series
13.25 16 3 2000-3200 25-38 48-854360A45 Black Max Sport Series
13.75 15 3 2200-3700 22-35 48-77342A45 Black Max Sport Series
13.8 14 3 2400-4400 19-32 48-854352A45 Black Max Sport Series
14 13 3 2700-5300 16-29 48-77340A45 Black Max Sport Series
14 11 3 4000+ 1-22 48-77338A45 Black Max Sport Series

75 STD HP FourStroke ‑ Freshwater Fish (V and Mod V)
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1300-1900 34-47 48-8M0055551 SpitFire X7 Elite Series
12.7 19 4 1500-2300 29-42 48-8M0055550 SpitFire X7 Elite Series
13 17 4 1700-2900 23-37 48-8M0055549 SpitFire X7 Elite Series
13.5 15 4 2100-3900 18-31 48-8M0055548 SpitFire X7 Elite Series
13 18 3 1600-2500 26-40 48- 16988A46 Vengeance Sport Series
13.1 16 3 1900-3400 20-34 48- 16986A46 Vengeance Sport Series
13.25 15 3 2100-3900 18-31 48-854354A46 Vengeance Sport Series
13.3 14 3 2300-4700 15-28 48- 17314A46 Vengeance Sport Series
14 12 3 2900-7500 10-23 48- 17312A46 Vengeance Sport Series
12.8 19 4 1500-2300 29-42 48-8M8026600 SpitFire Elite Series
12.8 17 4 1700-2900 23-37 48-8M8026590 SpitFire Elite Series
12.8 15 4 2100-3900 18-31 48-8M8026580 SpitFire Elite Series
12.5 23 3 1200-1600 39-52 48-77350A45 Black Max Sport Series
12.75 21 3 1300-1900 34-47 48-77348A45 Black Max Sport Series
13 19 3 1500-2300 29-42 48-77346A45 Black Max Sport Series
13.25 17 3 1700-2900 23-37 48-77344A45 Black Max Sport Series
13.25 16 3 1900-3400 20-34 48-854360A45 Black Max Sport Series
13.75 15 3 2100-3900 18-31 48-77342A45 Black Max Sport Series
13.8 14 3 2300-4700 15-28 48-854352A45 Black Max Sport Series

60 STD HP FourStroke ‑ Freshwater Fish (V and Mod V)
Engine RPM Range: 5500‑6000 Gearcase ratio: 2.33:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
10.6 14 4 1300-1700 16-30 48-878616A46 Trophy Sport Elite Series
10.6 13 4 1500-2000 17-26 48-878614A46 Trophy Sport Elite Series
10.6 12 4 1700-2500 19-22 48-878612A46 Trophy Sport Elite Series
10.25 15 3 1200-1600 15-33 48-855862A46 Vengeance Sport Series
10.4 14 3 1300-1700 16-30 48-855860A46 Vengeance Sport Series
10.5 13 3 1500-2000 17-26 48-855858A46 Vengeance Sport Series
10.1 15 4 4 4 3 1200-1600 15-33 48-8M8026640 SpitFire Elite Series
MERCURY PROPELLER RIGGING CHART 790 16 3 3 3 3 1100-1400 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
48-8M8026635
SpitFire
14
Elite Series
16-30
10.1
1300-1700
1500-2000
48-8M8026630
17-26
Elite Series
10.3
13
SpitFire
13-40
Sport Series
Black Max
48- 73144A45
1000-1300
17
10
Sport Series
48- 73142A45
Black Max
10
14-37
15-33
1200-1600
10.1
Black Max
48- 73140A45
15
Sport Series
1300-1700
Sport Series
Black Max
16-30
48- 73138A45
10.25
14
Sport Series
13
17-26
1500-2000
Black Max
10.4
48- 73136A45
