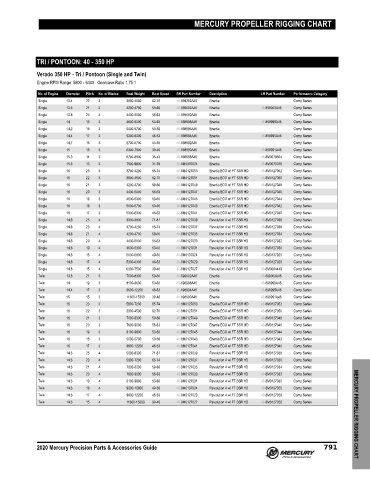

MERCURY PROPELLER RIGGING CHART
TRI / PONTOON: 40 - 350 HP
Verado 350 HP ‑ Tri / Pontoon (Single and Twin)
Engine RPM Range: 5800 ‑ 6400 Gearcase Ratio 1.75:1
No. of Engine Diameter Pitch No. of Blades Boat Weight Boat Speed RH Part Number Description LH Part Number Performance Category
Single 13.4 22 3 3900-4500 62-70 48-899202A46 Enertia Comp Series
Single 13.6 21 3 4200-4700 59-66 48-899002A46 Enertia 48-899003A46 Comp Series
Single 13.8 20 3 4400-5000 56-63 48-899000A46 Enertia Comp Series
Single 14 19 3 4600-5300 53-60 48-898998A46 Enertia 48-898999A46 Comp Series
Single 14.2 18 3 5000-5700 50-56 48-898996A46 Enertia Comp Series
Single 14.4 17 3 5300-6300 46-53 48-898994A46 Enertia 48-898995A46 Comp Series
Single 14.7 16 3 5700-6700 43-50 48-898992A46 Enertia Comp Series
Single 15 15 3 6300-7500 39-46 48-898990A46 Enertia 48-898991A46 Comp Series
Single 15.3 14 3 6700-8500 35-43 48-898988A46 Enertia 48-8M0079504 Comp Series
Single 15.6 13 3 7500-9800 31-39 48-8M0070074 Enertia 48-8M0070076 Comp Series
Single 16 23 3 3700-4200 65-74 48-8M0127053 Enertia ECO w/ FT SSR HD 48-8M0127052 Comp Series
Single 16 22 3 3900-4500 62-70 48-8M0127051 Enertia ECO w/ FT SSR HD 48-8M0127050 Comp Series
Single 16 21 3 4200-4700 59-66 48-8M0127049 Enertia ECO w/ FT SSR HD 48-8M0127048 Comp Series
Single 16 20 3 4400-5000 56-63 48-8M0127047 Enertia ECO w/ FT SSR HD 48-8M0127046 Comp Series
Single 16 19 3 4600-5300 53-60 48-8M0127045 Enertia ECO w/ FT SSR HD 48-8M0127044 Comp Series
Single 16 18 3 5000-5700 50-56 48-8M0127043 Enertia ECO w/ FT SSR HD 48-8M0127042 Comp Series
Single 16 17 3 5300-6300 46-53 48-8M0127041 Enertia ECO w/ FT SSR HD 48-8M0127040 Comp Series
Single 14.6 25 4 3300-3800 71-81 48-8M0127039 Revolution 4 w/ FT SSR HD 48-8M0127038 Comp Series
Single 14.6 23 4 3700-4200 65-74 48-8M0127037 Revolution 4 w/ FT SSR HD 48-8M0127036 Comp Series
Single 14.6 21 4 4200-4700 59-66 48-8M0127035 Revolution 4 w/ FT SSR HD 48-8M0127034 Comp Series
Single 14.6 20 4 4400-5000 56-63 48-8M0127033 Revolution 4 w/ FT SSR HD 48-8M0127032 Comp Series
Single 14.6 19 4 4600-5300 53-60 48-8M0127031 Revolution 4 w/ FT SSR HD 48-8M0127030 Comp Series
Single 14.6 18 4 5000-5800 49-56 48-8M0137924 Revolution 4 w/ FT SSR HD 48-8M0137925 Comp Series
Single 14.6 17 4 5300-6300 46-53 48-8M0127029 Revolution 4 w/ FT SSR HD 48-8M0127028 Comp Series
Single 14.6 15 4 6300-7500 39-46 48-8M0127027 Revolution 4 w/ FT SSR HD 48-8M0064449 Comp Series
Twin 13.6 21 3 7000-8300 59-66 48-899002A46 Enertia 48-899003A46 Comp Series
Twin 14 19 3 8100-9600 53-60 48-898998A46 Enertia 48-898999A46 Comp Series
Twin 14.4 17 3 9600-12200 46-53 48-898994A46 Enertia 48-898995A46 Comp Series
Twin 15 15 3 11600-15300 39-46 48-898990A46 Enertia 48-898991A46 Comp Series
Twin 16 23 3 5800-7200 65-74 48-8M0127053 Enertia ECO w/ FT SSR HD 48-8M0127052 Comp Series
Twin 16 22 3 3900-4500 62-70 48-8M0127051 Enertia ECO w/ FT SSR HD 48-8M0127050 Comp Series
Twin 16 21 3 7000-8300 59-66 48-8M0127049 Enertia ECO w/ FT SSR HD 48-8M0127048 Comp Series
Twin 16 20 3 7600-9000 56-63 48-8M0127047 Enertia ECO w/ FT SSR HD 48-8M0127046 Comp Series
Twin 16 19 3 8100-9600 53-60 48-8M0127045 Enertia ECO w/ FT SSR HD 48-8M0127044 Comp Series
Twin 16 18 3 5000-5700 50-56 48-8M0127043 Enertia ECO w/ FT SSR HD 48-8M0127042 Comp Series
Twin 16 17 3 9600-12200 46-53 48-8M0127041 Enertia ECO w/ FT SSR HD 48-8M0127040 Comp Series
Twin 14.6 25 4 5000-6300 71-81 48-8M0127039 Revolution 4 w/ FT SSR HD 48-8M0127038 Comp Series
Twin 14.6 23 4 5800-7200 65-74 48-8M0127037 Revolution 4 w/ FT SSR HD 48-8M0127036 Comp Series
Twin 14.6 21 4 7000-8300 59-66 48-8M0127035 Revolution 4 w/ FT SSR HD 48-8M0127034 Comp Series
Twin 14.6 20 4 7600-9000 56-63 48-8M0127033 Revolution 4 w/ FT SSR HD 48-8M0127032 Comp Series
Twin 14.6 19 4 8100-9600 53-60 48-8M0127031 Revolution 4 w/ FT SSR HD 48-8M0127030 Comp Series
Twin 14.6 18 4 9000-10800 49-56 48-8M0137924 Revolution 4 w/ FT SSR HD 48-8M0137925 Comp Series
Twin 14.6 17 4 9600-12200 46-53 48-8M0127029 Revolution 4 w/ FT SSR HD 48-8M0127028 Comp Series
Twin 14.6 15 4 11600-15300 39-46 48-8M0127027 Revolution 4 w/ FT SSR HD 48-8M0127026 Comp Series MERCURY PROPELLER RIGGING CHART
2020 Mercury Precision Parts & Accessories Guide 791
