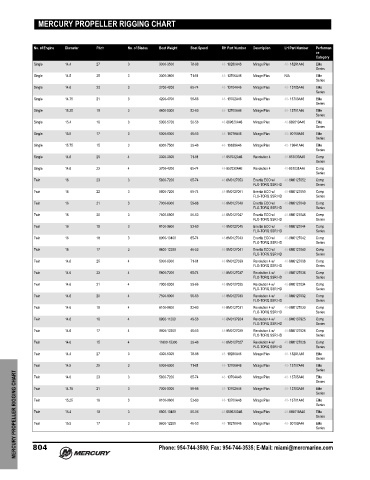

MERCURY PROPELLER RIGGING CHART

No. of Engine Diameter Pitch No. of Blades Boat Weight Boat Speed RH Part Number Description LH Part Number Performan
ce
Category
Single 14.4 27 3 3000-3500 78-88 48- 18280A46 Mirage Plus 48- 18281A46 Elite
Series
Single 14.5 25 3 3300-3800 71-81 48- 13706A46 Mirage Plus N/A Elite
Series
Single 14.6 23 3 3700-4200 65-74 48- 13704A46 Mirage Plus 48- 13705A46 Elite
Series
Single 14.75 21 3 4200-4700 59-66 48- 13702A46 Mirage Plus 48- 13703A46 Elite
Series
Single 15.25 19 3 4600-5300 53-60 48- 13700A46 Mirage Plus 48- 13701A46 Elite
Series
Single 15.4 18 3 5000-5700 50-56 48-889620A46 Mirage Plus 48-889619A46 Elite
Series
Single 15.5 17 3 5300-6300 46-53 48- 18278A46 Mirage Plus 48- 90159A46 Elite
Series
Single 15.75 15 3 6300-7500 39-46 48- 19838A46 Mirage Plus 48- 19841A46 Elite
Series
Single 14.6 25 4 3300-3800 71-81 48-857032A46 Revolution 4 48-857033A46 Comp
Series
Single 14.6 23 4 3700-4200 65-74 48-857030A46 Revolution 4 48-857031A46 Comp
Series
Twin 16 23 3 5800-7200 65-74 48-8M0127053 Enertia ECO w/ 48-8M0127052 Comp
FLO-TORQ SSR HD Series
Twin 16 22 3 5800-7200 65-74 48-8M0127051 Enertia ECO w/ 48-8M0127050 Comp
FLO-TORQ SSR HD Series
Twin 16 21 3 7000-8300 59-66 48-8M0127049 Enertia ECO w/ 48-8M0127048 Comp
FLO-TORQ SSR HD Series
Twin 16 20 3 7500-8900 56-63 48-8M0127047 Enertia ECO w/ 48-8M0127046 Comp
FLO-TORQ SSR HD Series
Twin 16 19 3 8100-9600 53-60 48-8M0127045 Enertia ECO w/ 48-8M0127044 Comp
FLO-TORQ SSR HD Series
Twin 16 18 3 8900-10400 65-74 48-8M0127043 Enertia ECO w/ 48-8M0127042 Comp
FLO-TORQ SSR HD Series
Twin 16 17 3 9600-12200 46-53 48-8M0127041 Enertia ECO w/ 48-8M0127040 Comp
FLO-TORQ SSR HD Series
Twin 14.6 25 4 5000-6300 71-81 48-8M0127039 Revolution 4 w/ 48-8M0127038 Comp
FLO-TORQ SSR HD Series
Twin 14.6 23 4 5800-7200 65-74 48-8M0127037 Revolution 4 w/ 48-8M0127036 Comp
FLO-TORQ SSR HD Series
Twin 14.6 21 4 7000-8300 59-66 48-8M0127035 Revolution 4 w/ 48-8M0127034 Comp
FLO-TORQ SSR HD Series
Twin 14.6 20 4 7500-8900 56-63 48-8M0127033 Revolution 4 w/ 48-8M0127032 Comp
FLO-TORQ SSR HD Series
Twin 14.6 19 4 8100-9600 53-60 48-8M0127031 Revolution 4 w/ 48-8M0127030 Comp
FLO-TORQ SSR HD Series
Twin 14.6 18 4 8900-11200 49-56 48-8M0137924 Revolution 4 w/ 48-8M0137925 Comp
FLO-TORQ SSR HD Series
Twin 14.6 17 4 9600-12200 46-53 48-8M0127029 Revolution 4 w/ 48-8M0127028 Comp
FLO-TORQ SSR HD Series
Twin 14.6 15 4 11600-15300 39-46 48-8M0127027 Revolution 4 w/ 48-8M0127026 Comp
FLO-TORQ SSR HD Series
Twin 14.4 27 3 4300-5300 78-88 48- 18280A46 Mirage Plus 48- 18281A46 Elite
Series
Twin 14.5 25 3 5000-6300 71-81 48- 13706A46 Mirage Plus 48- 13707A46 Elite
Series
MERCURY PROPELLER RIGGING CHART 804 15.25 19 3 3 3 8100-9600 53-60 48- 13700A46 Mirage Plus 48- 13701A46 Series
23
14.6
Twin
Elite
48- 13704A46
Mirage Plus
48- 13705A46
5800-7200
65-74
3
Series
Mirage Plus
48- 13703A46
Elite
7000-8300
48- 13702A46
59-66
Twin
21
14.75
3
Elite
Twin
Series
18
Mirage Plus
Twin
48-889620A46
15.4
48-889619A46
50-56
Elite
8900-10400
Series
Elite
Twin
46-53
48- 90159A46
48- 18278A46
Mirage Plus
17
15.5
9600-12200
Series
