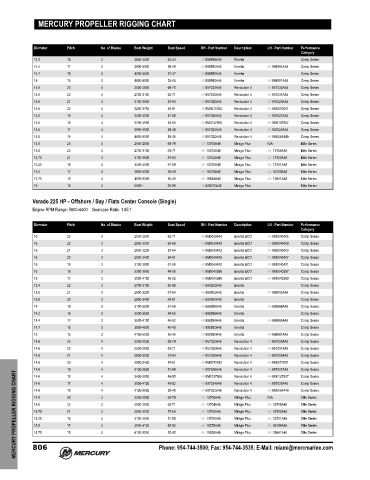

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
14.2 18 3 3650-4500 45-54 48-898996A46 Enertia Comp Series
14.4 17 3 3900-5000 39-49 48-898994A46 Enertia 48-898994A46 Comp Series
14.7 16 3 4300-5500 37-47 48-898992A46 Enertia Comp Series
15 15 3 4600-6000 35-45 48-898990A46 Enertia 48-898991A46 Comp Series
14.6 25 4 2500-2800 69-78 48-857032A46 Revolution 4 48-857033A46 Comp Series
14.6 23 4 2700-3100 63-71 48-857030A46 Revolution 4 48-857031A46 Comp Series
14.6 21 4 3100-3500 57-64 48-857028A46 Revolution 4 48-857029A46 Comp Series
14.6 20 4 3250-3750 54-61 48-8M0070052 Revolution 4 48-8M0070051 Comp Series
14.6 19 4 3400-4000 51-58 48-857026A46 Revolution 4 48-857027A46 Comp Series
14.6 18 4 3750-4500 45-54 48-8M0137906 Revolution 4 48-8M0137907 Comp Series
14.6 17 4 3900-5000 39-49 48-857024A46 Revolution 4 48-857025A46 Comp Series
14.6 15 4 4600-6000 35-45 48-857022A46 Revolution 4 48-8M0064449 Comp Series
14.5 25 3 2500-2800 69-78 48- 13706A46 Mirage Plus N/A Elite Series
14.6 23 3 2700-3100 63-71 48- 13704A46 Mirage Plus 48- 13705A46 Elite Series
14.75 21 3 3100-3500 57-64 48- 13702A46 Mirage Plus 48- 13703A46 Elite Series
15.25 19 3 3400-4000 51-58 48- 13700A46 Mirage Plus 48- 13701A46 Elite Series
15.5 17 3 3900-5000 39-49 48- 18278A46 Mirage Plus 48- 90159A46 Elite Series
15.75 15 3 4600-6000 35-45 48- 19838A46 Mirage Plus 48- 19841A46 Elite Series
16 13 3 5500+ 25-38 48-826072A46 Mirage Plus Elite Series

Verado 225 HP ‑ Offshore / Bay / Flats Center Console (Single)
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
16 23 3 2500-2800 63-71 48-8M0040404 Enertia ECO 48-8M0040405 Comp Series
16 22 3 2650-3000 60-68 48-8M0040408 Enertia ECO 48-8M0040409 Comp Series
16 21 3 2800-3200 57-64 48-8M0040402 Enertia ECO 48-8M0040403 Comp Series
16 20 3 2950-3400 54-61 48-8M0040406 Enertia ECO 48-8M0040407 Comp Series
16 19 3 3100-3600 51-58 48-8M0040400 Enertia ECO 48-8M0040401 Comp Series
16 18 3 3300-3850 48-55 48-8M0040396 Enertia ECO 48-8M0040397 Comp Series
16 17 3 3500-4100 45-52 48-8M0040398 Enertia ECO 48-8M0040399 Comp Series
13.4 22 3 2700-3100 60-68 48-899202A46 Enertia Comp Series
13.6 21 3 2800-3200 57-64 48-899002A46 Enertia 48-899003A46 Comp Series
13.8 20 3 2950-3400 54-61 48-899000A46 Enertia Comp Series
14 19 3 3100-3600 51-58 48-898998A46 Enertia 48-898999A46 Comp Series
14.2 18 3 3300-3850 48-55 48-898996A46 Enertia Comp Series
14.4 17 3 3500-4100 45-52 48-898994A46 Enertia 48-898995A46 Comp Series
14.7 16 3 3800-4800 40-49 48-898992A46 Enertia Comp Series
15 15 3 4100-5500 35-45 48-898990A46 Enertia 48-898991A46 Comp Series
14.6 25 4 2200-2500 69-78 48-857032A46 Revolution 4 48-857033A46 Comp Series
14.6 23 4 2500-2800 63-71 48-857030A46 Revolution 4 48-857031A46 Comp Series
14.6 21 4 2800-3200 57-64 48-857028A46 Revolution 4 48-857029A46 Comp Series
14.6 20 4 2950-3400 54-61 48-8M0070052 Revolution 4 48-8M0070051 Comp Series
14.6 19 4 4 4 4 3100-3600 51-58 48-857026A46 Revolution 4 48-857027A46 Comp Series
MERCURY PROPELLER RIGGING CHART 806 25 3 3 3 3 3 3 2200-2500 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
48-8M0137907
14.6
Comp Series
18
48-8M0137906
48-55
3400-3850
Revolution 4
Comp Series
Revolution 4
3500-4100
48-857025A46
48-857024A46
17
45-52
14.6
48-8M0064449
48-857022A46
35-45
Revolution 4
15
Comp Series
14.6
4100-5500
N/A
Elite Series
14.5
48- 13706A46
Mirage Plus
69-78
48- 13705A46
48- 13704A46
14.6
2500-2800
23
63-71
Mirage Plus
Elite Series
Elite Series
48- 13703A46
Mirage Plus
2800-3200
57-64
14.75
21
48- 13702A46
48- 13700A46
48- 13701A46
3100-3600
19
51-58
Mirage Plus
Elite Series
15.25
17
15.5
Elite Series
48- 18278A46
3500-4100
45-52
Mirage Plus
48- 90159A46
Elite Series
48- 19838A46
35-45
15
48- 19841A46
4100-5500
Mirage Plus
15.75
