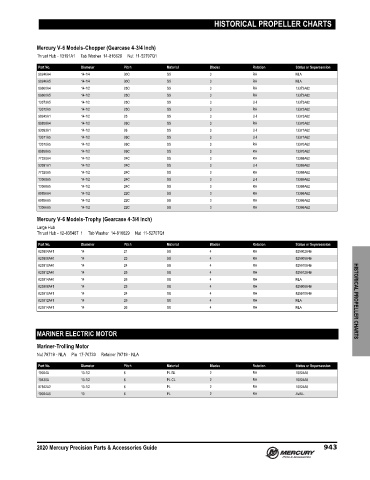

HISTORICAL PROPELLER CHARTS

Mercury V‑6 Models‑Chopper (Gearcase 4‑3/4 Inch)
Thrust Hub ‑ 13191A1 Tab Washer 14‑816629 Nut 11‑52707Q1
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
98246A4 14-1/4 30C SS 3 RH NLA
98246A5 14-1/4 30C SS 3 RH NLA
89860A4 14-1/2 28C SS 3 RH 13372A62
89860A5 14-1/2 28C SS 3 RH 13372A62
13373A5 14-1/2 28C SS 3 LH 13373A62
13372A5 14-1/2 28C SS 3 RH 13372A62
98245A1 14-1/2 28 SS 3 LH 13373A62
89858A4 14-1/2 26C SS 3 RH 13370A62
93593A1 14-1/2 26 SS 3 LH 13371A62
13371A5 14-1/2 26C SS 3 LH 13371A62
13370A5 14-1/2 26C SS 3 RH 13370A62
89858A5 14-1/2 26C SS 3 RH 13370A62
77320A4 14-1/2 24C SS 3 RH 13368A62
93591A1 14-1/2 24C SS 3 LH 13369A62
77320A5 14-1/2 24C SS 3 RH 13368A62
13369A5 14-1/2 24C SS 3 LH 13369A62
13368A5 14-1/2 24C SS 3 RH 13368A62
89856A4 14-1/2 22C SS 3 RH 13366A62
89856A5 14-1/2 22C SS 3 RH 13366A62
13366A5 14-1/2 22C SS 3 RH 13366A62
Mercury V‑6 Models‑Trophy (Gearcase 4‑3/4 Inch)
Large Hub
Thrust Hub ‑ 12‑835467 1 Tab Washer 14‑816629 Nut 11‑52707Q1
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
825904A41 14 21 SS 4 RH 825902A46
825908A40 14 23 SS 4 RH 825906A46
825910A40 14 24 SS 4 RH 825910A46
825912A40 14 25 SS 4 RH 825912A46
825914A40 14 26 SS 4 RH NLA
825908A41 14 23 SS 4 RH 825906A46
825910A41 14 24 SS 4 RH 825910A46
825912A41 14 25 SS 4 RH NLA HISTORICAL PROPELLER CHARTS
825914A41 14 26 SS 4 RH NLA

MARINER ELECTRIC MOTOR

Mariner‑Trolling Motor
Nut 79719 ‑ NLA Pin 17‑70733 Retainer 79719 ‑ NLA

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
18024A__ 10-1/2 6 PL BL 2 RH 18024A5
18430A__ 10-1/2 6 PL CL 2 RH 18024A5
87842A2 10-1/2 6 PL 2 RH 18024A5
18024A5 10 6 PL 2 RH AVAIL.

2020 Mercury Precision Parts & Accessories Guide 943
