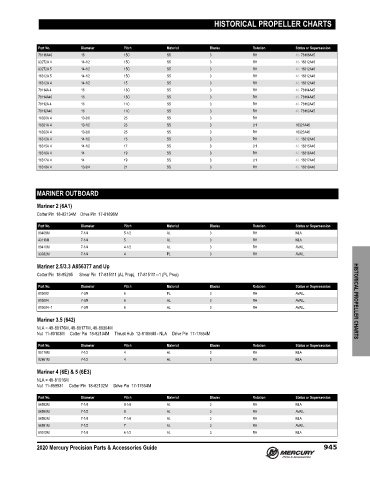

Page 954 - Latin America Accessories Guide (2020) - 8M0163252

HISTORICAL PROPELLER CHARTS

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
78116A40 16 15C SS 3 RH 48- 78116A45
93272A 4 14-1/2 15C SS 3 RH 48- 16312A46
93272A 5 14-1/2 15C SS 3 RH 48- 16312A46
16312A 5 14-1/2 15C SS 3 RH 48- 16312A46
16312A 4 14-1/2 15 SS 3 RH 48- 16312A46
78114A 4 16 13C SS 3 RH 48- 78114A45
78114A40 16 13C SS 3 RH 48- 78114A45
78112A 4 16 11C SS 3 RH 48- 78112A45
78112A40 16 11C SS 3 RH 48- 78112A45
16320A 4 13-3/8 25 SS 3 RH
16321A 4 13-1/2 23 SS 3 LH 16321A46
16322A 4 13-3/8 25 SS 3 RH 16322A46
16312A 4 14-1/2 15 SS 3 RH 48- 16312A46
16315A 4 14-1/2 17 SS 3 LH 48- 16315A46
16316A 4 14 19 SS 3 RH 48- 16316A46
16317A 4 14 19 SS 3 LH 48- 16317A46
16318A 4 13-3/4 21 SS 3 RH 48- 16318A46

MARINER OUTBOARD

Mariner 2 (6A1)
Cotter Pin 18‑82134M Drive Pin 17‑81896M
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
80409M 7-1/4 5-1/2 AL 3 RH NLA
43110M 7-1/4 5 AL 3 RH NLA
80410M 7-1/4 4-1/2 AL 3 RH AVAIL.
93032M 7-1/4 4 PL 3 RH AVAIL.
Mariner 2.5/3.3 A856377 and Up
Cotter Pin 18‑95295 Shear Pin 17‑815111 (AL Prop), 17‑815111‑‑1 (PL Prop)

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
815083 7-3/8 6 PL 3 RH AVAIL.
815084 7-3/8 6 AL 3 RH AVAIL. HISTORICAL PROPELLER CHARTS
815084--1 7-3/8 6 AL 3 RH AVAIL.
Mariner 3.5 (642)
NLA = 48‑80176M, 48‑80177M, 48‑80304M
Nut 11‑80103M Cotter Pin 18‑82134M Thrust Hub 12‑81855M ‑ NLA Drive Pin 17‑17554M

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
80178M 7-1/2 4 AL 3 RH NLA
82861M 7-1/2 4 AL 3 RH NLA
Mariner 4 (6E) & 5 (6E3)
NLA = 48‑81016M
Nut 11‑859931 Cotter Pin 18‑82132M Drive Pin 17‑17554M

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
96593M 7-1/4 8-1/4 AL 3 RH NLA
96590M 7-1/2 8 AL 3 RH AVAIL.
96592M 7-1/4 7-1/4 AL 3 RH NLA
96591M 7-1/2 7 AL 3 RH AVAIL.
81015M 7-1/4 6-1/2 AL 3 RH NLA

2020 Mercury Precision Parts & Accessories Guide 945
