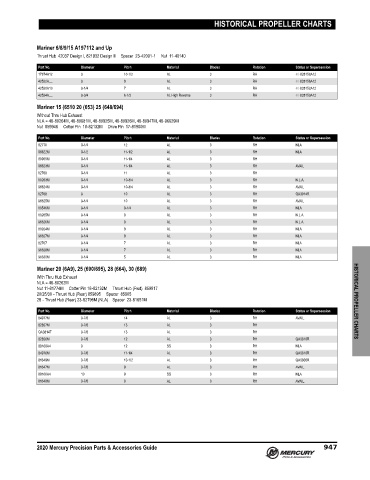

HISTORICAL PROPELLER CHARTS

Mariner 6/8/9/15 A197112 and Up
Thrust Hub 42037 Design I, 821932 Design II Spacer 23‑42091‑1 Nut 11‑40140
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
17874A12 9 10-1/2 AL 3 RH 48-828158A12
42522A__ 9 9 AL 3 RH 48-828156A12
42520A10 9-1/4 7 AL 3 RH 48-828152A12
42524A__ 9-3/4 6-1/2 AL High Reverse 3 RH 48-828150A12
Mariner 15 (6510 20 (653) 25 (648/694)
Without Thru Hub Exhaust
NLA = 48‑80264M, 48‑80681M, 48‑80925M, 48‑80926M, 48‑80947M, 48‑96629M
Nut 859946 Cotter Pin 18‑82132M Drive Pin 17‑81900M
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
82770 9-1/4 12 AL 3 RH NLA
96622M 9-1/2 11-1/2 AL 3 RH NLA
80955M 9-1/4 11-1/4 AL 3 RH
96623M 9-1/4 11-1/4 AL 3 RH AVAIL
82769 9-1/4 11 AL 3 RH
80263M 9-1/4 10-3/4 AL 3 RH N.L.A.
96624M 9-1/4 10-3/4 AL 3 RH AVAIL
82768 9 10 AL 3 RH QA3914R
96625M 9-1/4 10 AL 3 RH AVAIL
80546M 9-1/4 9-1/4 AL 3 RH NLA
80265M 9-1/4 9 AL 3 RH N.L.A.
96626M 9-1/4 9 AL 3 RH N.L.A.
80924M 9-1/4 8 AL 3 RH NLA
96627M 9-1/4 8 AL 3 RH NLA
82767 9-1/4 7 AL 3 RH NLA
96628M 9-1/4 7 AL 3 RH NLA
96630M 9-1/4 5 AL 3 RH NLA

Mariner 20 (6A9), 25 (690/695), 28 (664), 30 (689)
With Thru Hub Exhaust
NLA = 48‑80262M
Nut 11‑81774M Cotter Pin 18‑82132M Thrust Hub (Fwd) 859917
20/25/30 ‑ Thrust Hub (Rear) 859895 Spacer 85905
28 ‑ Thrust Hub (Rear) 23‑82796M (NLA) Spacer 23‑81651M HISTORICAL PROPELLER CHARTS

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
84977M 9-7/8 14 AL 3 RH AVAIL.
82827M 9-7/8 13 AL 3 RH
QA3814T 9-7/8 13 AL 3 RH
82826M 9-7/8 12 AL 3 RH QA3810R
88168A4 9 12 SS 3 RH NLA
84976M 9-7/8 11-1/4 AL 3 RH QA3810R
81649M 9-7/8 10-1/2 AL 3 RH QA3808R
81647M 9-7/8 9 AL 3 RH AVAIL.
88166A4 10 9 SS 3 RH NLA
81648M 9-7/8 8 AL 3 RH AVAIL.
