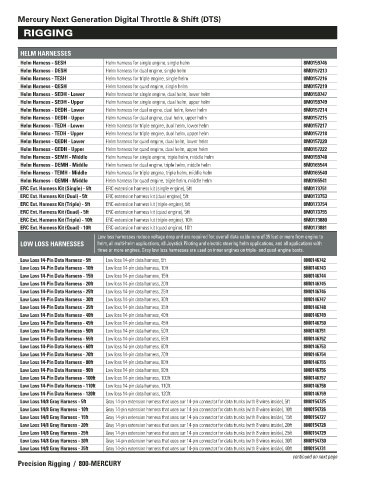

Mercury Next Generation Digital Throttle & Shift (DTS)

RIGGING

HELM HARNESSES
Helm Harness - SESH Helm harness for single engine, single helm 8M0159746
Helm Harness - DESH Helm harness for dual engine, single helm 8M0157213
Helm Harness - TESH Helm harness for triple engine, single helm 8M0157216
Helm Harness - QESH Helm harness for quad engine, single helm 8M0157219
Helm Harness - SEDH - Lower Helm harness for single engine, dual helm, lower helm 8M0159747
Helm Harness - SEDH - Upper Helm harness for single engine, dual helm, upper helm 8M0159749
Helm Harness - DEDH - Lower Helm harness for dual engine, dual helm, lower helm 8M0157214
Helm Harness - DEDH - Upper Helm harness for dual engine, dual helm, upper helm 8M0157215
Helm Harness - TEDH - Lower Helm harness for triple engine, dual helm, lower helm 8M0157217
Helm Harness - TEDH - Upper Helm harness for triple engine, dual helm, upper helm 8M0157218
Helm Harness - QEDH - Lower Helm harness for quad engine, dual helm, lower helm 8M0157220
Helm Harness - QEDH - Upper Helm harness for quad engine, dual helm, upper helm 8M0157222
Helm Harness - SEMH - Middle Helm harness for single engine, triple helm, middle helm 8M0159748
Helm Harness - DEMH - Middle Helm harness for dual engine, triple helm, middle helm 8M0165544
Helm Harness - TEMH - Middle Helm harness for triple engine, triple helm, middle helm 8M0165540
Helm Harness - QEMH - Middle Helm harness for quad engine, triple helm, middle helm 8M0165541
ERC Ext. Harness Kit (Single) - 5ft ERC extension harness kit (single engine), 5ft 8M0173751
ERC Ext. Harness Kit (Dual) - 5ft ERC extension harness kit (dual engine), 5ft 8M0173753
ERC Ext. Harness Kit (Triple) - 5ft ERC extension harness kit (triple engine), 5ft 8M0173754
ERC Ext. Harness Kit (Quad) - 5ft ERC extension harness kit (quad engine), 5ft 8M0173755
ERC Ext. Harness Kit (Triple) - 10ft ERC extension harness kit (triple engine), 10ft 8M0173880
ERC Ext. Harness Kit (Quad) - 10ft ERC extension harness kit (quad engine), 10ft 8M0173881
Low loss harnesses reduce voltage drop and are required for: overall data cable runs of 35 feet or more from engine to
LOW LOSS HARNESSES helm, all multi-helm applications, all Joystick Piloting and electric steering helm applications, and all applications with
three or more engines. Gray low loss harnesses are used on inner engines on triple- and quad-engine boats.
Low Loss 14-Pin Data Harness - 5ft Low loss 14-pin data harness, 5ft 8M0146742
Low Loss 14-Pin Data Harness - 10ft Low loss 14-pin data harness, 10ft 8M0146743
Low Loss 14-Pin Data Harness - 15ft Low loss 14-pin data harness, 15ft 8M0146744
Low Loss 14-Pin Data Harness - 20ft Low loss 14-pin data harness, 20ft 8M0146745
Low Loss 14-Pin Data Harness - 25ft Low loss 14-pin data harness, 25ft 8M0146746
Low Loss 14-Pin Data Harness - 30ft Low loss 14-pin data harness, 30ft 8M0146747
Low Loss 14-Pin Data Harness - 35ft Low loss 14-pin data harness, 35ft 8M0146748
Low Loss 14-Pin Data Harness - 40ft Low loss 14-pin data harness, 40ft 8M0146749
Low Loss 14-Pin Data Harness - 45ft Low loss 14-pin data harness, 45ft 8M0146750
Low Loss 14-Pin Data Harness - 50ft Low loss 14-pin data harness, 50ft 8M0146751
Low Loss 14-Pin Data Harness - 55ft Low loss 14-pin data harness, 55ft 8M0146752
Low Loss 14-Pin Data Harness - 60ft Low loss 14-pin data harness, 60ft 8M0146753
Low Loss 14-Pin Data Harness - 70ft Low loss 14-pin data harness, 70ft 8M0146754
Low Loss 14-Pin Data Harness - 80ft Low loss 14-pin data harness, 80ft 8M0146755
Low Loss 14-Pin Data Harness - 90ft Low loss 14-pin data harness, 90ft 8M0146756
Low Loss 14-Pin Data Harness - 100ft Low loss 14-pin data harness, 100ft 8M0146757
Low Loss 14-Pin Data Harness - 110ft Low loss 14-pin data harness, 110ft 8M0146758
Low Loss 14-Pin Data Harness - 120ft Low loss 14-pin data harness, 120ft 8M0146759
Low Loss 14/8 Gray Harness - 5ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 5ft 8M0154725
Low Loss 14/8 Gray Harness - 10ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 10ft 8M0154726
Low Loss 14/8 Gray Harness - 15ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 15ft 8M0154727
Low Loss 14/8 Gray Harness - 20ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 20ft 8M0154728
Low Loss 14/8 Gray Harness - 25ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 25ft 8M0154729
Low Loss 14/8 Gray Harness - 30ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 30ft 8M0154730
Low Loss 14/8 Gray Harness - 35ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 40ft 8M0154731
continued on next page
