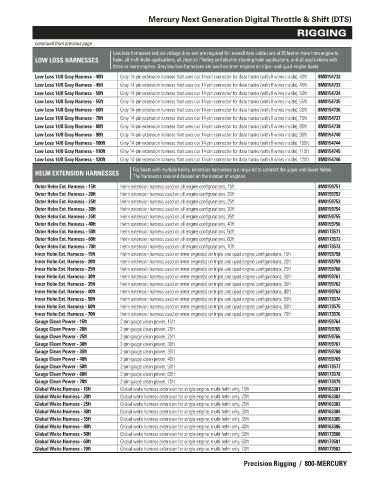

Page 3 - DTS-Rigging-Guide- 8M0183288

Mercury Next Generation Digital Throttle & Shift (DTS)

RIGGING
continued from previous page
Low loss harnesses reduce voltage drop and are required for: overall data cable runs of 35 feet or more from engine to
LOW LOSS HARNESSES helm, all multi-helm applications, all Joystick Piloting and electric steering helm applications, and all applications with
three or more engines. Gray low loss harnesses are used on inner engines on triple- and quad-engine boats.
Low Loss 14/8 Gray Harness - 40ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 40ft 8M0154732
Low Loss 14/8 Gray Harness - 45ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 45ft 8M0154733
Low Loss 14/8 Gray Harness - 50ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 50ft 8M0154734
Low Loss 14/8 Gray Harness - 55ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 55ft 8M0154735
Low Loss 14/8 Gray Harness - 60ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 60ft 8M0154736
Low Loss 14/8 Gray Harness - 70ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 70ft 8M0154737
Low Loss 14/8 Gray Harness - 80ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 80ft 8M0154738
Low Loss 14/8 Gray Harness - 90ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 90ft 8M0154740
Low Loss 14/8 Gray Harness - 100ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 100ft 8M0154744
Low Loss 14/8 Gray Harness - 110ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 110ft 8M0154745
Low Loss 14/8 Gray Harness - 120ft Gray 14-pin extension harness that uses our 14-pin connector for data trunks (with 8 wires inside), 120ft 8M0154746
For boats with multiple helms, extension harnesses are required to connect the upper and lower helms.
HELM EXTENSION HARNESSES The harnesses required depend on the number of engines.

Outer Helm Ext. Harness - 15ft Helm extension harness used on all engine configurations, 15ft 8M0159751
Outer Helm Ext. Harness - 20ft Helm extension harness used on all engine configurations, 20ft 8M0159752
Outer Helm Ext. Harness - 25ft Helm extension harness used on all engine configurations, 25ft 8M0159753
Outer Helm Ext. Harness - 30ft Helm extension harness used on all engine configurations, 30ft 8M0159754
Outer Helm Ext. Harness - 35ft Helm extension harness used on all engine configurations, 35ft 8M0159755
Outer Helm Ext. Harness - 40ft Helm extension harness used on all engine configurations, 40ft 8M0159756
Outer Helm Ext. Harness - 50ft Helm extension harness used on all engine configurations, 50ft 8M0173571
Outer Helm Ext. Harness - 60ft Helm extension harness used on all engine configurations, 60ft 8M0173572
Outer Helm Ext. Harness - 70ft Helm extension harness used on all engine configurations, 70ft 8M0173573
Inner Helm Ext. Harness - 15ft Helm extension harness used on inner engine(s) on triple and quad engine configurations, 15ft 8M0159758
Inner Helm Ext. Harness - 20ft Helm extension harness used on inner engine(s) on triple and quad engine configurations, 20ft 8M0159759
Inner Helm Ext. Harness - 25ft Helm extension harness used on inner engine(s) on triple and quad engine configurations, 25ft 8M0159760
Inner Helm Ext. Harness - 30ft Helm extension harness used on inner engine(s) on triple and quad engine configurations, 30ft 8M0159761
Inner Helm Ext. Harness - 35ft Helm extension harness used on inner engine(s) on triple and quad engine configurations, 35ft 8M0159762
Inner Helm Ext. Harness - 40ft Helm extension harness used on inner engine(s) on triple and quad engine configurations, 40ft 8M0159763
Inner Helm Ext. Harness - 50ft Helm extension harness used on inner engine(s) on triple and quad engine configurations, 50ft 8M0173574
Inner Helm Ext. Harness - 60ft Helm extension harness used on inner engine(s) on triple and quad engine configurations, 60ft 8M0173575
Inner Helm Ext. Harness - 70ft Helm extension harness used on inner engine(s) on triple and quad engine configurations, 70ft 8M0173576
Gauge Clean Power - 15ft 2-pin gauge clean power, 15ft 8M0159764
Gauge Clean Power - 20ft 2-pin gauge clean power, 20ft 8M0159765
Gauge Clean Power - 25ft 2-pin gauge clean power, 25ft 8M0159766
Gauge Clean Power - 30ft 2-pin gauge clean power, 30ft 8M0159767
Gauge Clean Power - 35ft 2-pin gauge clean power, 35ft 8M0159768
Gauge Clean Power - 40ft 2-pin gauge clean power, 40ft 8M0159769
Gauge Clean Power - 50ft 2-pin gauge clean power, 50ft 8M0173577
Gauge Clean Power - 60ft 2-pin gauge clean power, 60ft 8M0173578
Gauge Clean Power - 70ft 2-pin gauge clean power, 70ft 8M0173579
Global Wake Harness - 15ft Global wake harness extension for single-engine, multi-helm only, 15ft 8M0163381
Global Wake Harness - 20ft Global wake harness extension for single-engine, multi-helm only, 20ft 8M0163382
Global Wake Harness - 25ft Global wake harness extension for single-engine, multi-helm only, 25ft 8M0163383
Global Wake Harness - 30ft Global wake harness extension for single-engine, multi-helm only, 30ft 8M0163384
Global Wake Harness - 35ft Global wake harness extension for single-engine, multi-helm only, 35ft 8M0163385
Global Wake Harness - 40ft Global wake harness extension for single-engine, multi-helm only, 40ft 8M0163386
Global Wake Harness - 50ft Global wake harness extension for single-engine, multi-helm only, 50ft 8M0173580
Global Wake Harness - 60ft Global wake harness extension for single-engine, multi-helm only, 60ft 8M0173581
Global Wake Harness - 70ft Global wake harness extension for single-engine, multi-helm only, 70ft 8M0173582

Precision Rigging / 800-MERCURY
