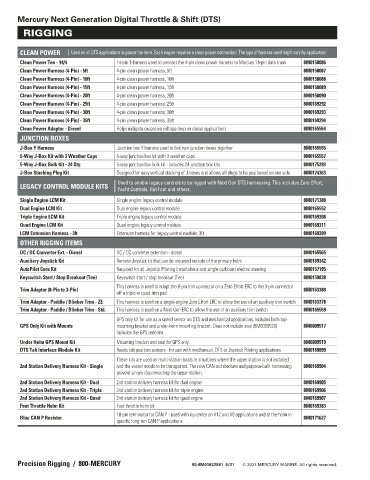

Mercury Next Generation Digital Throttle & Shift (DTS)

         RIGGING


        CLEAN POWER      Used on all DTS applications to power the helm. Each engine requires a clean power connection. The type of harness used might vary by application.
        Clean Power Tee - 14/4          14-pin T-harness used to connect the 4-pin clean power harness to Mercury 14-pin data trunk  8M0158086
        Clean Power Harness (4-Pin) - 5ft  4-pin clean power harness, 5ft                            8M0158087
        Clean Power Harness (4-Pin) - 10ft  4-pin clean power harness, 10ft                          8M0158088
        Clean Power Harness (4-Pin) - 15ft  4-pin clean power harness, 15ft                          8M0158089
        Clean Power Harness (4-Pin) - 20ft  4-pin clean power harness, 20ft                          8M0158090
        Clean Power Harness (4-Pin) - 25ft  4-pin clean power harness, 25ft                          8M0169292
        Clean Power Harness (4-Pin) - 30ft  4-pin clean power harness, 30ft                          8M0169293
        Clean Power Harness (4-Pin) - 35ft  4-pin clean power harness, 35ft                          8M0169294
        Clean Power Adaptor - Diesel    Helps mitigate excessive voltage drop on diesel applications  8M0165564
        JUNCTION BOXES
        J-Box Y Harness                 Junction box Y harness used to link two junction boxes together  8M0165555
        5-Way J-Box Kit with 3 Weather Caps  5-way junction box kit with 3 weather caps              8M0165557
        5-Way J-Box Bulk Kit - 24 Qty.  5-way junction box bulk kit - includes 24 junction box kits  8M0175293
        J-Box Stacking Plug Kit         Designed for easy vertical stacking of J-boxes and allows all plugs to be positioned on one side  8M0174363
                                        Used to enable legacy controls to be rigged with Next Gen DTS harnessing. This includes Zero Effort,
        LEGACY CONTROL MODULE KITS      Yacht Controls, Hot Foot and others.

        Single Engine LCM Kit           Single engine legacy control module                          8M0171388
        Dual Engine LCM Kit             Dual engine legacy control module                            8M0165552
        Triple Engine LCM Kit           Triple engine legacy control module                          8M0169308
        Quad Engine LCM Kit             Quad engine legacy control module                            8M0169311
        LCM Extension Harness - 3ft     Extension harness for legacy control module, 3ft             8M0169399
        OTHER RIGGING ITEMS
        DC / DC Convertor Ext. - Diesel  DC / DC converter extention - diesel                        8M0165565
        Auxiliary Joystick Kit          Remote Joystick kit that can be mounted outside of the primary helm  8M0169342
        AutoPilot Core Kit              Required for all Joystick Piloting installations and single outboard electric steering  8M0157195
        Keyswitch Start / Stop Breakout (Tee)  Keyswitch start / stop breakout (Tee)                 8M0159838
                                        This harness is used to adapt the 8-pin trim connector on a Zero Effort ERC to the 3-pin connector
        Trim Adaptor (8-Pin to 3-Pin)                                                                8M0163380
                                        off a triple or quad trim pad
        Trim Adaptor - Paddle / Blinker Trim - ZE  This harness is used on a single-engine Zero Effort ERC to allow the use of an auxiliary trim switch  8M0163378
        Trim Adaptor - Paddle / Blinker Trim - Std.  This harness is used on a Next Gen ERC to allow the use of an auxiliary trim switch  8M0165559
                                        GPS only kit for use as a speed sensor on DTS and mechanical applications. Includes both top-
        GPS Only Kit with Mounts        mounting bracket and under-helm mounting bracket. Does not include seal (8M6009520).   8M6009517
                                        Includes the GPS antenna.
        Under Helm GPS Mount Kit        Mounting bracket and seal for GPS only                       8M6009519
        DTS Tab Interface Module Kit    Reads tab position sensors - for use with mechanical, DTS or Joystick Piloting applications  8M0169899
                                        These kits are used on multi-station boats in situations where the upper station is not installed
        2nd Station Delivery Harness Kit - Single  and the vessel needs to be transported. The new CAN architecture and purpose-built harnessing   8M0169904
                                        prevent simply disconnecting the upper station.
        2nd Station Delivery Harness Kit - Dual  2nd station delivery harness kit for dual engine    8M0169905
        2nd Station Delivery Harness Kit - Triple  2nd station delivery harness kit for triple engine  8M0169906
        2nd Station Delivery Harness Kit - Quad  2nd station delivery harness kit for quad engine    8M0169907
        Foot Throttle Helm Kit          Foot throttle helm kit                                       8M0169383
                                        10-pin terminator for CAN P - used with rig center on V12 and V8 applications and at the helm in
        Blue CAN P Resistor                                                                          8M0171627
                                        specific long-run CAN P applications
