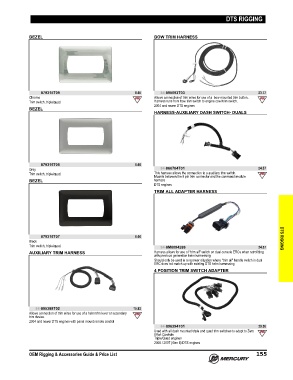

Page 168 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

DTS RIGGING

BEZEL BOW TRIM HARNESS

879315T09 8.65 84-895093T03 23.77
Chrome Allows connection of trim wires for use of a bow mounted trim button.
Trim switch, triple/quad. Harness runs from bow trim switch to engine cowl trim switch.
2004 and newer DTS engines
BEZEL
HARNESS-AUXILIARY DASH SWITCH- DUALS

879315T05 5.65
Grey 84-866704T01 24.57
Trim switch, triple/quad. This harness allows the connection to a auxiliary trim switch.
Mounts between the 8 pin trim connector and the command module
BEZEL harness
DTS engines
TRIM ALL ADAPTER HARNESS

879315T07 5.66
Black DTS RIGGING
Trim switch, triple/quad. 84-8M0094269 34.57
AUXILIARY TRIM HARNESS Harness allows for use of "trim all" switch on dual console ERCs when retrofitting
with previous generation helm harnessing
Should only be used in a repower situation where "trim all" handle switch in dual
ERC does not match up with existing DTS helm harnessing
4 POSITION TRIM SWITCH ADAPTER

84-895388T02 15.82
Allows connection of trim wires for use of a helm trim lever or secondary
trim device.
2004 and newer DTS engines with panel mount remote control
84-896394T01 39.36
Used with all dash mounted triple and quad trim switches to adapt to Zero
Effort Controls
Triple/Quad engines
2006 / 2007 (Gen II) DTS engines

OEM Rigging & Accessories Guide & Price List 155
