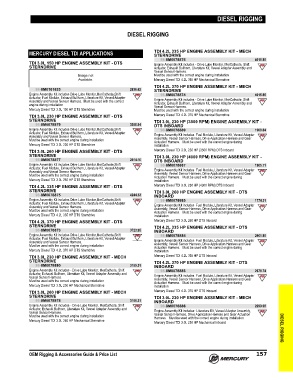

Page 170 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

DIESEL RIGGING

DIESEL RIGGING

MERCURY DIESEL TDI APPLICATIONS TDI 4.2L 335 HP ENGINE ASSEMBLY KIT - MECH
STERNDRIVE
98-8M0078876 4015.85
TDI 3.0L 150 HP ENGINE ASSEMBLY KIT - DTS Engine Assembly Kit includes ‑ Drive Lube Monitor, MerCathode, Shift
STERNDRIVE Actuator, Exhaust Bullhorn, Literature Kit, Vessel Adapter Assembly and
Vessel Sensor Harness.
Must be used with the correct engine during installation
Mercury Diesel TDI 4.2L 335 HP Mechanical Sterndrive
TDI 4.2L 370 HP ENGINE ASSEMBLY KIT - MECH
98-8M0101633 2836.62 STERNDRIVE
Engine Assembly Kit includes Drive Lube Monitor,MerCathode,Shift 98-8M0078874 4015.85
Actuator, Fuel Module, Exhaust Bullhorn, Literature Kit, Vessel Adapter
Assembly and Vessel Sensor Harness. Must be used with the correct Engine Assembly Kit includes ‑ Drive Lube Monitor, MerCathode, Shift
Actuator, Exhaust Bullhorn, Literature Kit, Vessel Adapter Assembly and
engine during installation Vessel Sensor Harness.
Mercury Diesel TDI 3.0L 150 HP DTS Sterndrive Must be used with the correct engine during installation
TDI 3.0L 230 HP ENGINE ASSEMBLY KIT - DTS Mercury Diesel TDI 4.2L 370 HP Mechanical Sterndrive
STERNDRIVE TDI 3.0L 230 HP (3500 RPM) ENGINE ASSEMBLY KIT -
98-8M0078879 3350.94 DTS INBOARD
Engine Assembly Kit includes Drive Lube Monitor,MerCathode,Shift 98-8M0078889 1908.84
Actuator, Fuel Module, Exhaust Bullhorn, Literature Kit, Vessel Adapter Engine Assembly Kit includes Fuel Module, Literature Kit, Vessel Adapter
Assembly and Vessel Sensor Harness.
Must be used with the correct engine during installation Assembly, Vessel Sensor Harness, Drive Application Harness and Gear
Actuation Harness. Must be used with the correct engine during
Mercury Diesel TDI 3.0L 230 HP DTS Sterndrive installation
TDI 3.0L 260 HP ENGINE ASSEMBLY KIT - DTS Mercury Diesel TDI 3.0L 230 HP (3500 RPM) DTS Inboard
STERNDRIVE TDI 3.0L 230 HP (4000 RPM) ENGINE ASSEMBLY KIT -
98-8M0078877 2814.10 DTS INBOARD
Engine Assembly Kit includes Drive Lube Monitor,MerCathode,Shift 98-8M0078887 1905.71
Actuator, Fuel Module, Exhaust Bullhorn, Literature Kit, Vessel Adapter
Assembly and Vessel Sensor Harness. Engine Assembly Kit includes Fuel Module, Literature Kit, Vessel Adapter
Assembly, Vessel Sensor Harness, Drive Application Harness and Gear
Must be used with the correct engine during installation Actuation Harness. Must be used with the correct engine during
Mercury Diesel TDI 3.0L 260 HP DTS Sterndrive installation
TDI 4.2L 335 HP ENGINE ASSEMBLY KIT - DTS Mercury Diesel TDI 3.0L 230 HP (4000 RPM) DTS Inboard
STERNDRIVE TDI 3.0L 260 HP ENGINE ASSEMBLY KIT - DTS
98-8M0078875 4244.53 INBOARD
Engine Assembly Kit includes Drive Lube Monitor,MerCathode,Shift 98-8M0078885 1774.31
Actuator, Fuel Module, Exhaust Bullhorn, Literature Kit, Vessel Adapter Engine Assembly Kit includes Fuel Module, Literature Kit, Vessel Adapter
Assembly and Vessel Sensor Harness. Assembly, Vessel Sensor Harness, Drive Application Harness and Gear
Must be used with the correct engine during installation Actuation Harness. Must be used with the correct engine during
Mercury Diesel TDI 4.2L 335 HP DTS Sterndrive installation
TDI 4.2L 370 HP ENGINE ASSEMBLY KIT - DTS Mercury Diesel TDI 3.0L 260 HP DTS Inboard
STERNDRIVE TDI 4.2L 335 HP ENGINE ASSEMBLY KIT - DTS
98-8M0078873 3723.95 INBOARD
Engine Assembly Kit includes Drive Lube Monitor,MerCathode,Shift 98-8M0078884 2901.85
Actuator, Fuel Module, Exhaust Bullhorn, Literature Kit, Vessel Adapter Engine Assembly Kit includes Fuel Module, Literature Kit, Vessel Adapter
Assembly and Vessel Sensor Harness.
Must be used with the correct engine during installation Assembly, Vessel Sensor Harness, Drive Application Harness and Gear
Actuation Harness. Must be used with the correct engine during
Mercury Diesel TDI 4.2L 370 HP DTS Sterndrive installation
TDI 3.0L 230 HP ENGINE ASSEMBLY KIT - MECH Mercury Diesel TDI 4.2L 335 HP DTS Inboard
STERNDRIVE TDI 4.2L 370 HP ENGINE ASSEMBLY KIT - DTS
98-8M0078880 3155.31 INBOARD
Engine Assembly Kit includes ‑ Drive Lube Monitor, MerCathode, Shift 98-8M0078883 2678.74
Actuator, Exhaust Bullhorn, Literature Kit, Vessel Adapter Assembly and
Vessel Sensor Harness. Engine Assembly Kit includes Fuel Module, Literature Kit, Vessel Adapter
Assembly, Vessel Sensor Harness, Drive Application Harness and Gear
Must be used with the correct engine during installation Actuation Harness. Must be used with the correct engine during
Mercury Diesel TDI 3.0L 230 HP Mechanical Sterndrive installation
TDI 3.0L 260 HP ENGINE ASSEMBLY KIT - MECH Mercury Diesel TDI 4.2L 370 HP DTS Inboard
STERNDRIVE TDI 3.0L 230 HP ENGINE ASSEMBLY KIT - MECH
98-8M0078878 3155.31 INBOARD
Engine Assembly Kit includes ‑ Drive Lube Monitor, MerCathode, Shift 98-8M0078888 2299.98
Actuator, Exhaust Bullhorn, Literature Kit, Vessel Adapter Assembly and Engine Assembly Kit includes‑ Literature Kit, Vessel Adapter Assembly,
Vessel Sensor Harness.
Must be used with the correct engine during installation Vessel Sensor Harness, Drive Application Harness and Gear Actuation
Harness. Must be used with the correct engine during installation
Mercury Diesel TDI 3.0L 260 HP Mechanical Sterndrive
Mercury Diesel TDI 3.0L 230 HP Mechanical Inboard DIESEL RIGGING

OEM Rigging & Accessories Guide & Price List 157
