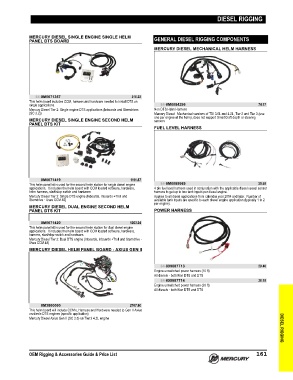

Page 174 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

DIESEL RIGGING

MERCURY DIESEL SINGLE ENGINE SINGLE HELM
PANEL DTS BOARD GENERAL DIESEL RIGGING COMPONENTS
MERCURY DIESEL MECHANICAL HELM HARNESS

84-8M0071357 310.23
This helm board includes CCM, harness and hardware needed to install DTS on
single applications. 84-8M0084296 74.17
Mercury Diesel Tier 2: Single engine DTS applications (Inboards and Sterndrives Non DTS Helm Harness
(SC 2.2)) Mercury Diesel: Mechanical versions of TDI 3.0L and 4.2L, Tier 2 and Tier 3 (use
one per engine at the helm), does not support SmartCraft depth or steering
MERCURY DIESEL SINGLE ENGINE SECOND HELM sensors
PANEL DTS KIT
FUEL LEVEL HARNESS

8M0071419 1111.87
This helm panel kit is used for the second helm station for single diesel engine 84-8M0089989 20.59
applications. It includes the helm board with CCM loaded software, hardware, 4 pin fuel level harness used in conjunction with the applicable diesel vessel sensor
helm harness, start/stop switch and hardware harness to get up to two tank inputs per diesel engine.
Mercury Diesel Tier 2: Single DTS engine (Inboards, Inboards +Troll and Applies to all diesel applications from calendar year 2014 and later. Number of
Sterndrive ‑ Uses CCM 48) available tank inputs are specific to each diesel engine application (typically 1 to 2
per engine).
MERCURY DIESEL DUAL ENGINE SECOND HELM
PANEL DTS KIT POWER HARNESS

8M0071420 1263.24
This helm panel kit is used for the second helm station for dual diesel engine
applications. It includes the helm board with CCM loaded software, hardware,
harness, start/stop switch and hardware.
Mercury Diesel Tier 2: Dual DTS engine (Inboards, Inboards +Troll and Sterndrive ‑
Uses CCM 48)
MERCURY DIESEL HELM PANEL BOARD - AXIUS GEN II

84-899887T13 29.40
Engine unswitched power harness (10 ft)
All diesels ‑ both Non DTS and DTS
84-899887T14 36.19
Engine unswitched power harness (20 ft)
All diesels ‑ both Non DTS and DTS

8M3800000 2767.80
This helm board will include CCM's, Harness and Hardware needed to Gen II Axius
on diesle DTS engines (specific application)
Mercury Diesel Axius Gen II (SC 2.5) on Tier 2 4.2L engine DIESEL RIGGING

OEM Rigging & Accessories Guide & Price List 161
