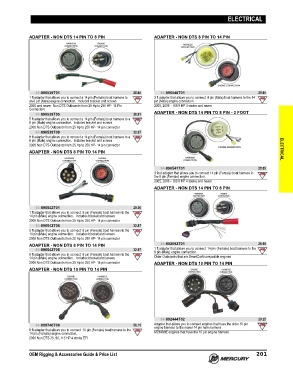

Page 214 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

ELECTRICAL

ADAPTER - NON DTS 14 PIN TO 8 PIN ADAPTER - NON DTS 8 PIN TO 14 PIN

84-896539T01 28.85 84-896540T01 28.85
1 ft adapter that allows you to connect a 14 pin (Female) boat harness to 3 ft adapter that allows you to connect 8 pin (Male) boat harness to the 14
an 8 pin (Male) engine connection. Includes bracket and screws pin (Male) engine connection.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin 2005, 2006 ‑ 8/9.9 HP 4 stroke and newer
Connectors
84-896539T05 30.91 ADAPTER - NON DTS 14 PIN TO 8 PIN - 3 FOOT
5 ft adapter that allows you to connect a 14 pin (Female) boat harness to a
8 pin (Male) engine connection. Includes bracket and screws
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
84-896539T08 32.97
8 ft adapter that allows you to connect a 14 pin (Female) boat harness to a
8 pin (Male) engine connection. Includes bracket and screws
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
ADAPTER - NON DTS 8 PIN TO 14 PIN ELECTRICAL

84-896541T01 28.85
3 foot adapter that allows you to connect 14 pin (Female) boat harness to
the 8 pin (Female) engine connection.
2005, 2006 ‑ 8/9.9 HP 4 stroke and newer
ADAPTER - NON DTS 14 PIN TO 8 PIN

84-896542T01 29.36
1 ft adapter that allows you to connect 8 pin (Female) boat harness to the
14 pin (Male) engine connection. Includes bracket and screws
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
84-896542T05 32.97
5 ft adapter that allows you to connect 8 pin (Female) boat harness to the
14 pin (Male) engine connection. Includes bracket and screws
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
ADAPTER - NON DTS 8 PIN TO 14 PIN 84-892092T01 28.59
84-896542T08 32.97 1 ft adapter that allows you to connect 14 pin (Female) boat harness to the
8 ft adapter that allows you to connect 8 pin (Female) boat harness to the 8 pin (Male) engine connection.
14 pin (Male) engine connection. Includes bracket and screws Older Outboards that are SmartCraft compatible engines
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector ADAPTER - NON DTS 10 PIN TO 14 PIN
ADAPTER - NON DTS 10 PIN TO 14 PIN

84-892444T02 29.25
84-858740T06 56.15 Adapter that allows you to connect engines that have the older 10 pin
6 ft adapter that allows you to connect 10 pin (Female) boat harness to the engine harness to the newer 14 pin helm harness
14 pin (Female) engine connection. MCM/MIE engines that have the 10 pin engine harness.
2006 Non DTS 75, 90, 115 HP 4 stroke EFI

OEM Rigging & Accessories Guide & Price List 201
