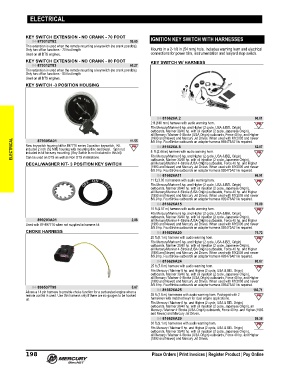

Page 211 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

ELECTRICAL

KEY SWITCH EXTENSION - NO CRANK - 70 FOOT IGNITION KEY SWITCH WITH HARNESSES
84-879312T82 59.69
This extension is used when the remote mounting a keyswitch (no crank possible).
Only has off/on functions ‑ 70 foot length Mounts in a 2‑1/8 in.(54 mm) hole. Includes warning horn and electrical
Used on all DTS engines. connections for power trim, instrumentation and lanyard stop switch.
KEY SWITCH EXTENSION - NO CRANK - 80 FOOT KEY SWITCH W/ HARNESS
84-879312T83 65.27
This extension is used when the remote mounting a keyswitch (no crank possible).
Only has off/on functions ‑ 80 foot length
Used on all DTS engines.
KEY SWITCH -3 POSITION HOUSING

84-816626A 2 60.01
2 ft.(610 mm) harness with audio warning horn.
Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin)
outboards, Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin),
all Mercury / Mariner 4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher
(1993 and Newer) and Mercury Jet Drives. When used with MY2005 and newer
ELECTRICAL New keyswitch housing kit for 897716 series 3 position keyswitch. Kit 8 ft.(2.44 m) harness with audio warning horn. 62.07
879305A01
11.55
8/9.9 hp. FourStroke outboards an adapter harness 892473A01 is required.
84-816626A 8
includes 2 inch (52 MM) housing with mounting disc and bezel. Spin nut
included in kit for easy mounting. (Key Switch is not included in this kit)
Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin)
Can be used on DTS as well as Non DTS installations.
all Mercury/Mariner 4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher
DECAL/WASHER KIT- 3 POSITION KEY SWITCH outboards, Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin),
(1993 and Newer) and Mercury Jet Drives. When used with MY2005 and newer
8/9.9 hp. FourStroke outboards an adapter harness 892473A01 is required.
84-816626A11 66.91
11 ft.(3.35 m) harness with audio warning horn.
Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin)
outboards, Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin),
all Mercury/Mariner 4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher
(1993 and Newer) and Mercury Jet Drives. When used with MY2005 and newer
8/9.9 hp. FourStroke outboards an adapter harness 892473A01 is required.
84-816626A15 70.00
15 ft.(4.57 m) harness with audio warning horn.
Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin)
outboards, Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin),
899203A01 2.88 all Mercury/Mariner 4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher
Used with 87‑897716 when not supplied in harness kit (1993 and Newer) and Mercury Jet Drives. When used with MY2005 and newer
8/9.9 hp. FourStroke outboards an adapter harness 892473A01 is required.
CHOKE HARNESS 84-816626A20 75.72
20 ft.(6.1 m) harness with audio warning horn.
Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin)
outboards, Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin),
all Mercury/Mariner 4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher
(1993 and Newer) and Mercury Jet Drives. When used with MY2005 and newer
8/9.9 hp. FourStroke outboards an adapter harness 892473A01 is required.
84-816626A24 80.87
25 ft.(7.6 m) harness with audio warning horn.
Fits Mercury / Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin)
outboards, Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin),
all Mercury / Mariner 4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher
(1993 and Newer) and Mercury Jet Drives. When used with MY2005 and newer
8/9.9 hp. FourStroke outboards an adapter harness 892473A01 is required.
84-896537T99 5.67
Allows a 14 pin harness to provide choke function for a carbureted engine when a 84-816626A25 160.71
remote control is used. Use this harness only if there are no gauges to be hooked 25 ft.(7.6 m) harnesses with audio warning horn. Packaged with 2
up. harnesses with matched keys for dual engine applications.
Fits Mercury / Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin)
outboards, Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all
Mercury / Mariner 4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993
and Newer) and Mercury Jet Drives.
84-816626A29 98.38
30 ft.(9.1 m) harnesses with audio warning horn.
Fits Mercury / Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin)
outboards, Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin),
all Mercury / Mariner 4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher
(1993 and Newer) and Mercury Jet Drives.
